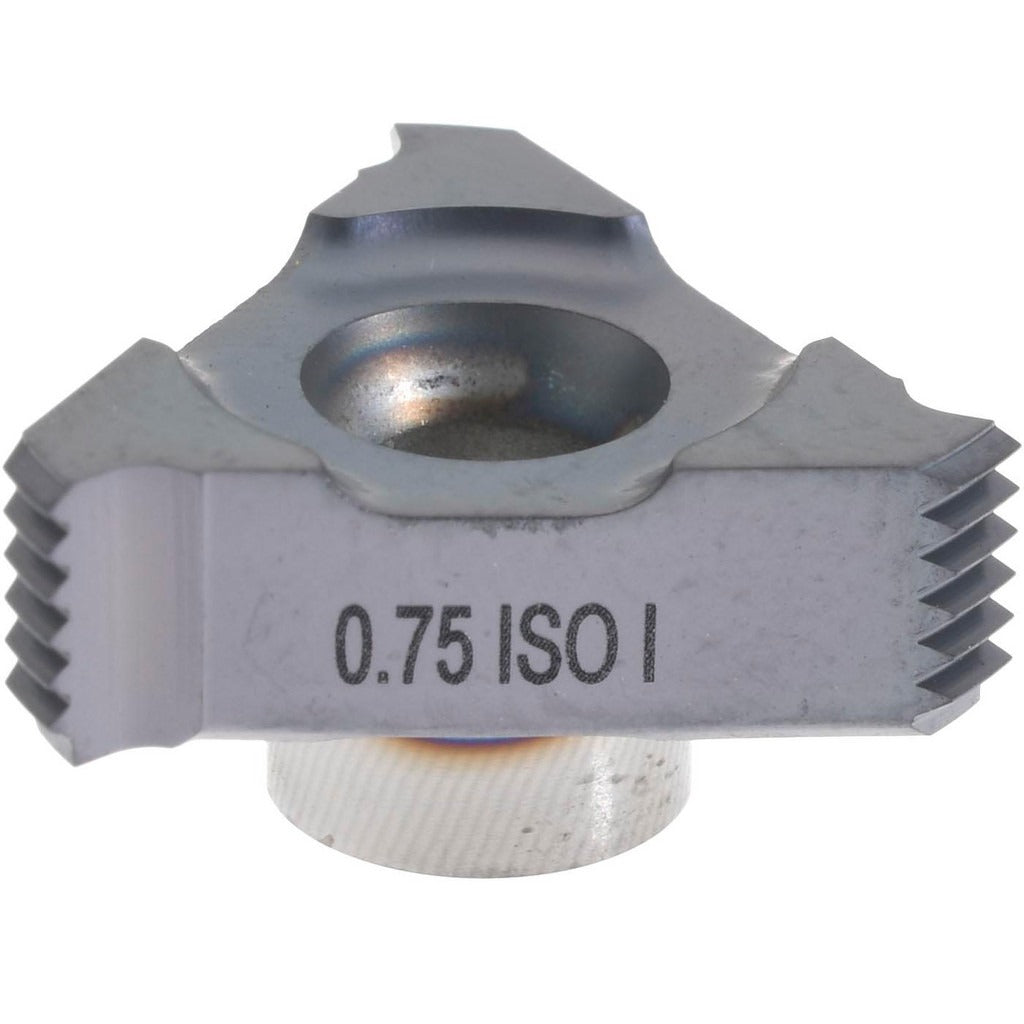

Carmex C18I0.75ISOMT7 Threading Insert Carbide MT7

Product Description

The CARMEX C18I0.75ISOMT7 is a carbide threading insert designed for internal thread cutting applications. Built to ISO and DIN 13 standards, this insert features a C18 insert style with a 0.75 ISO thread profile and MT7 manufacturer grade. The submicron carbide material grade provides the wear resistance and edge stability needed for consistent thread form on production runs. It is suited for use in CNC lathes and turning centers where precise internal threading is required. Machinists and tool-and-die professionals install this insert in compatible threading toolholders for repetitive ISO metric internal thread production.

This insert is intended for internal threading operations on ISO metric thread forms conforming to DIN 13. It fits production machining environments where tight thread tolerances and consistent tool life are priorities. The MT7 grade is appropriate for a range of workpiece materials, and the submicron carbide construction supports both finishing and light roughing passes in internal threading cycles. Minimum order quantity is 10 units, sold in individual packaging.

Key Features

• C18 insert style for internal threading applications
• MT7 manufacturer grade submicron carbide for improved wear resistance and edge retention
• ISO thread standard conforming to DIN 13 specifications
• Coated carbide finish for extended tool life in continuous threading operations
• Designed exclusively for internal thread cutting

Compatibility

Designed as an OEM-style replacement or standard tooling insert for internal ISO metric threading toolholders accepting C18 style inserts.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine before indexing or replacing inserts. Seat the insert fully and evenly in the toolholder pocket and secure with the appropriate clamping screw to manufacturer torque guidance. Verify thread pitch and form with a thread gauge after the first pass before committing to a full production run.
