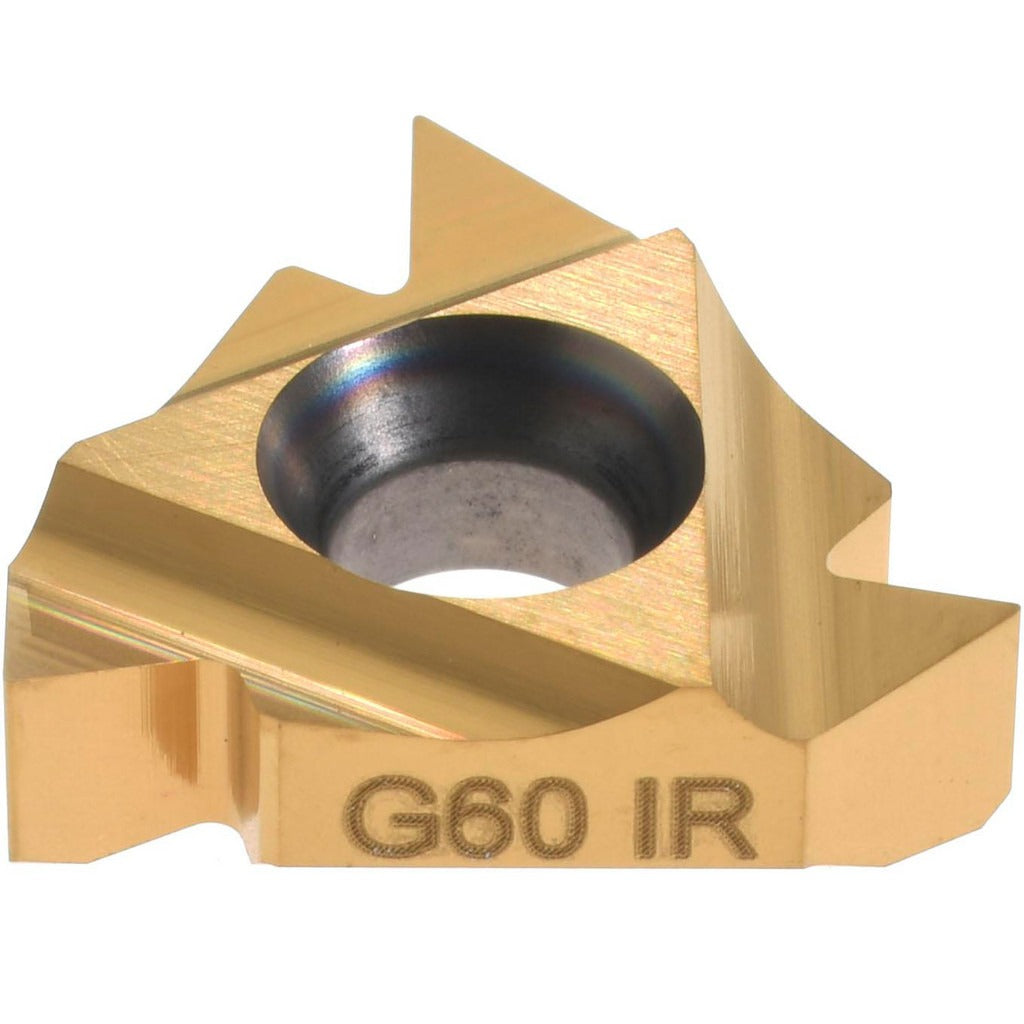

Carmex 3/8INRHG60P25C Threading Insert Carbide Tin

Product Description

The CARMEX 3/8INRHG60P25C is a laydown threading insert designed for internal thread cutting on CNC lathes and threading equipment. Built from solid carbide with a TiN (titanium nitride) PVD coating, this insert produces right-hand partial profile 60-degree threads across a range of thread pitches from 14 to 8 TPI (1.75 to 3.00 mm pitch). The 3/8 inch inscribed circle and 0.146 inch thickness conform to the 16IR insert style standard. Grade P25C is suited for general-purpose threading across a wide range of workpiece materials. This insert is installed by machinists and CNC operators in production and job-shop environments.

This insert is used for internal threading operations on materials spanning multiple ISO material groups, including steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and hardened materials. Its partial profile design allows a single insert to cover multiple thread pitches within the specified range, making it a practical choice for shops threading common unified and metric thread forms in both production runs and low-volume work. Typical applications include threading bores on components machined from bar stock or castings.

Key Features

• Solid carbide construction with PVD-applied TiN coating for wear resistance and extended tool life
• Partial profile 60-degree thread form covers 14 to 8 TPI (1.75 to 3.00 mm pitch) in a single insert
• Right-hand internal threading geometry in the 16IR laydown insert style
• 3/8 inch inscribed circle, 0.146 inch thickness - standard toolholder compatible dimensions
• P25C grade rated for universal workpiece materials across ISO groups H, K, M, N, P, and S
• Manufactured to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 16IR-style laydown threading toolholders that accept a 3/8 inch inscribed circle insert. Compatible with right-hand internal threading applications across ISO workpiece material groups H, K, M, N, P, and S.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the machine spindle before seating or replacing the insert. Use the correct torque wrench and insert screw specified by the toolholder manufacturer - do not overtighten. Verify insert seating and runout before resuming cutting operations.
