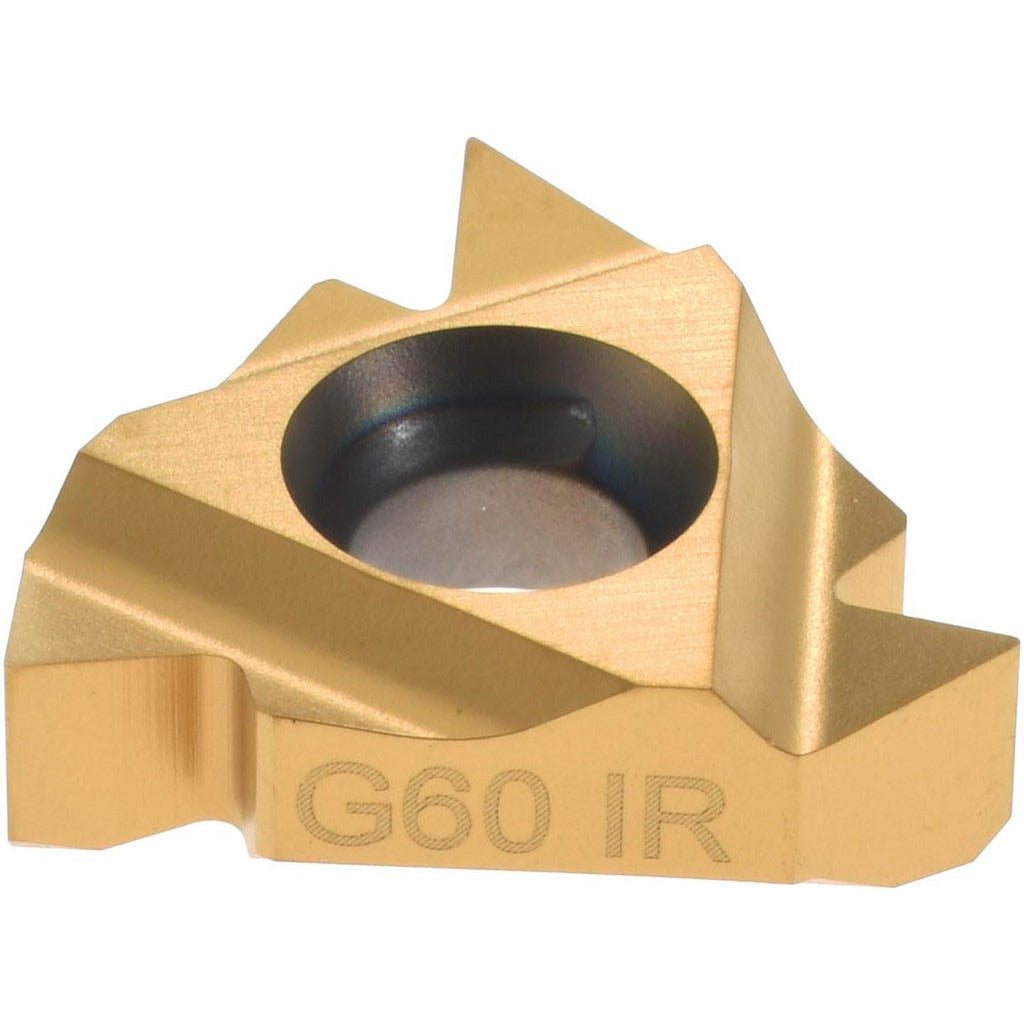

Carmex 3/8INRHG60MXC Threading Insert 3/8 in Ic Carbide

Product Description

The CARMEX 3/8INRHG60MXC is a solid carbide laydown threading insert designed for internal right-hand thread cutting on CNC lathes and turning centers. It features a 60-degree partial profile form for cutting unified and metric thread forms across a broad TPI range of 14 to 8 threads per inch, equivalent to a metric pitch range of 1.75 to 3.00 mm. The insert measures 3/8 inch inscribed circle and 0.146 inches thick. A PVD-applied TiN coating increases surface hardness and reduces built-up edge, extending tool life across a wide range of workpiece materials. This insert is suited for machinists and toolroom technicians running internal threading operations in production and job-shop environments.

This insert is rated for universal workpiece material compatibility, covering material groups H, K, M, N, P, and S - spanning carbon steels, alloy steels, stainless steels, cast irons, non-ferrous metals, and high-temp alloys. It is well-suited to internal threading in through-holes and blind bores on standard CNC turning equipment. The 16 IR insert style seats in compatible 16-series right-hand internal threading toolholders. Typical applications include producing standard fastener threads, hydraulic fitting threads, and precision threaded bores in machined components.

Key Features

• Solid carbide substrate with PVD TiN coating for extended wear resistance
• 60-degree partial profile geometry cuts a wide range of unified and metric thread forms from a single insert
• Covers 14 to 8 TPI (1.75 to 3.00 mm pitch) in one insert
• Right-hand internal threading orientation for standard bore applications
• Universal material compatibility across groups H, K, M, N, P, and S
• Manufactured to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 16-series right-hand internal threading toolholders compatible with the 16 IR insert style. Partial profile 60-degree geometry is compatible with unified (UN/UNC/UNF) and metric (M) thread standards within the 14 to 8 TPI and 1.75 to 3.00 mm pitch range.

Installation Notes
