Carmex 3/8INRH16UNP2 Threading Insert 16 Tpi Un Carbide

Product Description

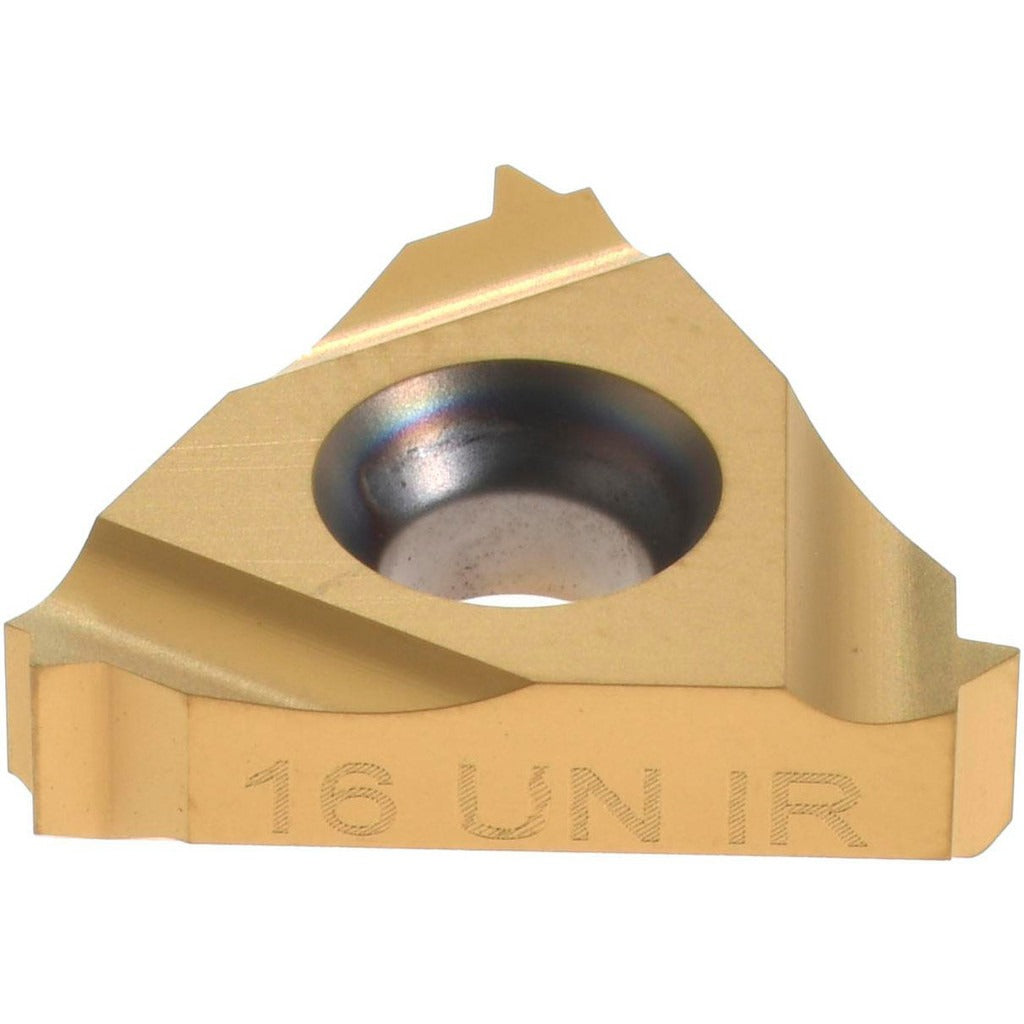

The CARMEX 3/8INRH16UNP2 is a laydown-style threading insert designed for right-hand internal UN thread cutting at 16 threads per inch (TPI). Manufactured from solid carbide with a PVD-applied titanium nitride (TiN) coating, it carries a P25C grade designation suited for a broad range of workpiece materials. The insert features a 3/8-inch inscribed circle, a thickness of 0.146 inches, and a 60-degree included angle. It is installed in CNC lathes and threading toolholders by machinists and turning-center operators performing precision internal thread work.

This insert is applied in internal threading operations on CNC turning centers and lathes where UN-standard thread profiles are required. The 16 TPI specification targets common fastener and pipe-fitting thread sizes within that standard. The P25C carbide grade and TiN finish make it suitable across multiple workpiece material categories, including steel, stainless, cast iron, non-ferrous alloys, and high-temperature alloys, as reflected in the multi-code material compatibility rating. Sold individually; minimum order quantity is 10 pieces per order.

Key Features

• Right-hand internal UN thread profile at 60-degree included angle, 16 TPI
• Solid carbide substrate with PVD TiN coating for wear resistance across varied materials
• P25C manufacturer grade rated for universal workpiece material compatibility
• 3/8-inch inscribed circle, 16IR insert style for standard laydown toolholders
• Thickness of 0.146 inches for consistent seating and tool life
• Meets CE and ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct-fit insert for 16IR-style laydown threading toolholders used in internal UN thread cutting applications.

Installation Notes
