Carmex 3/8INRH14UNP2 Threading Insert 14 Tpi Un Thread

Product Description

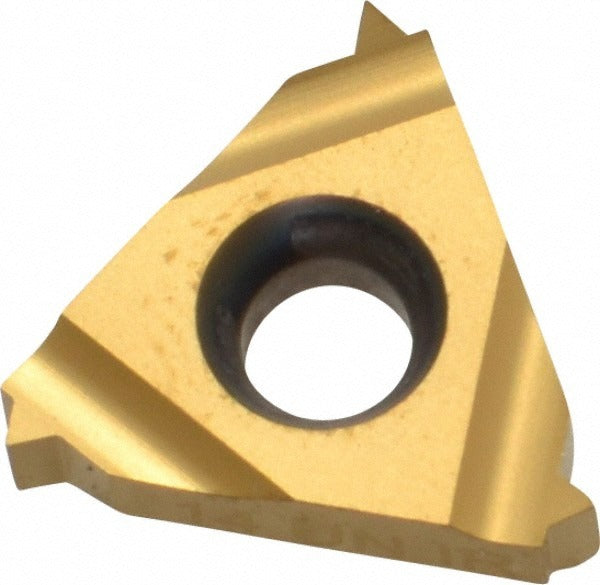

The CARMEX 3/8INRH14UNP2 is a solid carbide laydown threading insert designed for right-hand internal UN thread cutting at 14 threads per inch (TPI). Built to the 16 IR insert style, it features a PVD-applied TiN coating under the manufacturer grade P25C, which corresponds to a C5 material grade. The 60-degree included angle makes it suited for standard unified thread forms. At 0.375 inches inscribed circle diameter and 0.146 inches thick, this insert mounts in standard 16 IR toolholders. It is typically installed by CNC machinists and toolroom operators working internal threading operations on lathes and turning centers.

This insert is intended for internal UN threading applications across a wide range of workpiece materials. The H, K, M, N, P, and S material codes indicate universal application suitability, covering steel, stainless, cast iron, non-ferrous metals, high-temperature alloys, and similar materials. It is commonly used in production turning environments where consistent thread form and surface finish on internal bores are required. The solid carbide substrate with PVD TiN coating supports moderate to high cutting speeds.

Key Features

• Solid carbide substrate with PVD-applied TiN coating for extended tool life
• 16 IR insert style with 3/8 inch (0.375 inches) inscribed circle diameter
• Right-hand internal UN thread form, 14 TPI, 60-degree included angle
• Manufacturer grade P25C, material grade C5
• Universal workpiece material compatibility across H, K, M, N, P, and S codes
• Meets CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct application insert for 16 IR internal threading toolholders used in UN thread cutting at 14 TPI.

Installation Notes

This insert is installed by a machinist or toolroom technician into a compatible 16 IR internal threading toolholder mounted on a lathe or turning center. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench or insert key specified by the toolholder manufacturer when securing the clamping screw. Inspect the toolholder pocket for wear or debris before seating the insert.
