Carmex 3/8EXRH20UNP2 Threading Insert 20 Tpi Solid Carbide

Product Description

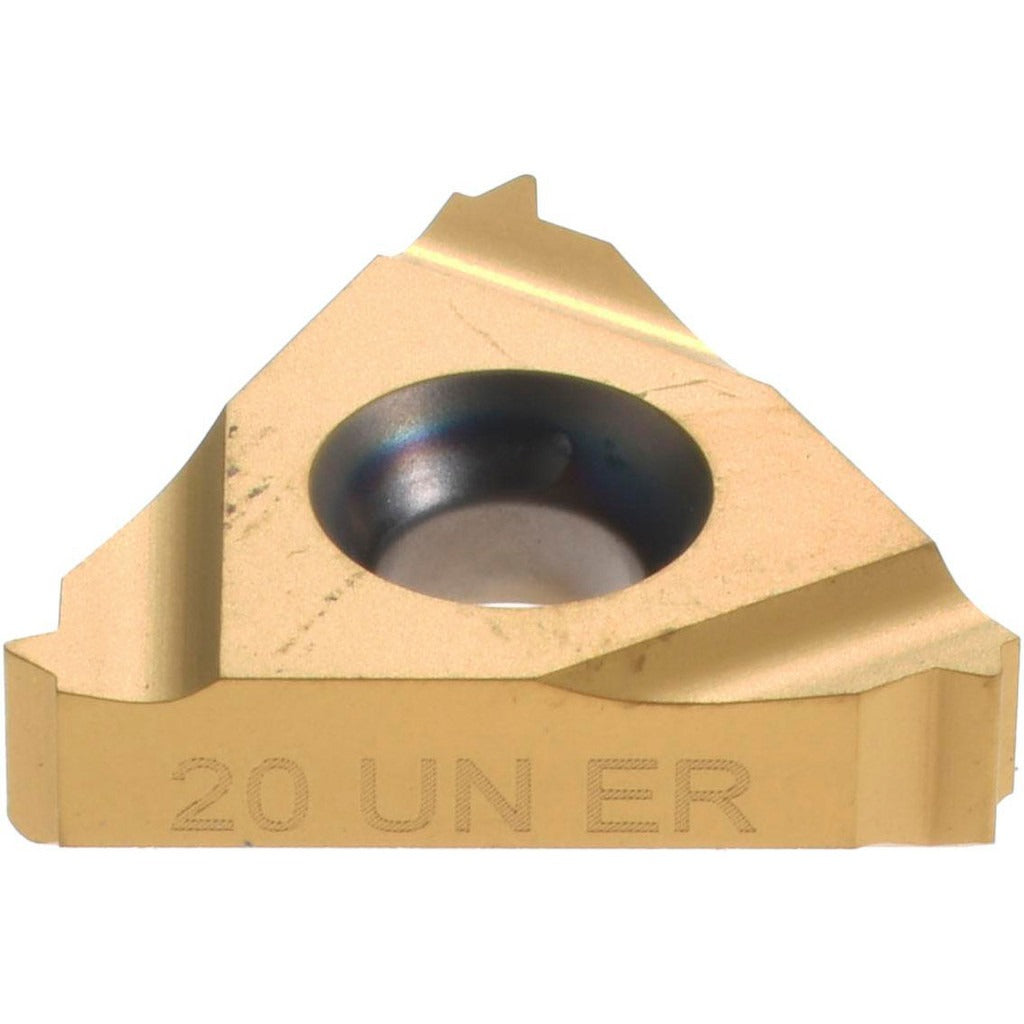

The CARMEX 3/8EXRH20UNP2 is a laydown threading insert designed for right-hand external UN thread cutting at 20 threads per inch (TPI). Manufactured from solid carbide with a TiN (titanium nitride) PVD coating, this insert delivers consistent thread form geometry on a wide range of workpiece materials. The 60-degree included angle conforms to the UN thread standard. With a 3/8 inch inscribed circle and a thickness of 0.146 inches, the insert fits standard 16ER-style toolholders commonly used in CNC turning and threading operations. It carries grade P25C, positioning it for general-purpose and semi-finish threading applications.

This insert is suited for external UN thread production on CNC lathes in both job-shop and production environments. The universal primary workpiece material compatibility means it performs across steel, stainless steel, cast iron, non-ferrous metals, high-temp alloys, and more - corresponding to ISO material groups H, K, M, N, P, and S. It is typically used by machining professionals and CNC operators running threaded components in industrial, mechanical, and instrumentation applications.

Key Features

• Right-hand external UN thread form with 60-degree included angle and 20 TPI
• Solid carbide substrate with P25C manufacturer grade for general-purpose threading
• TiN PVD coating for wear resistance and extended tool life
• 16ER insert style with 3/8 inch inscribed circle fits standard laydown threading toolholders
• Universal workpiece material compatibility across ISO groups H, K, M, N, P, and S
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 16ER-style laydown threading toolholders configured for right-hand external UN threading operations. Suitable across workpiece material groups H, K, M, N, P, and S per ISO classification.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the toolholder is clear of the workpiece before seating or replacing the insert. Use the correct torx or clamping screw specified by the toolholder manufacturer to secure the insert - do not overtighten. Confirm thread form and pitch against part print before starting a production run.
