Carmex 3/8EXRH16UNP2 Threading Insert 16 Tpi Un Carbide

Product Description

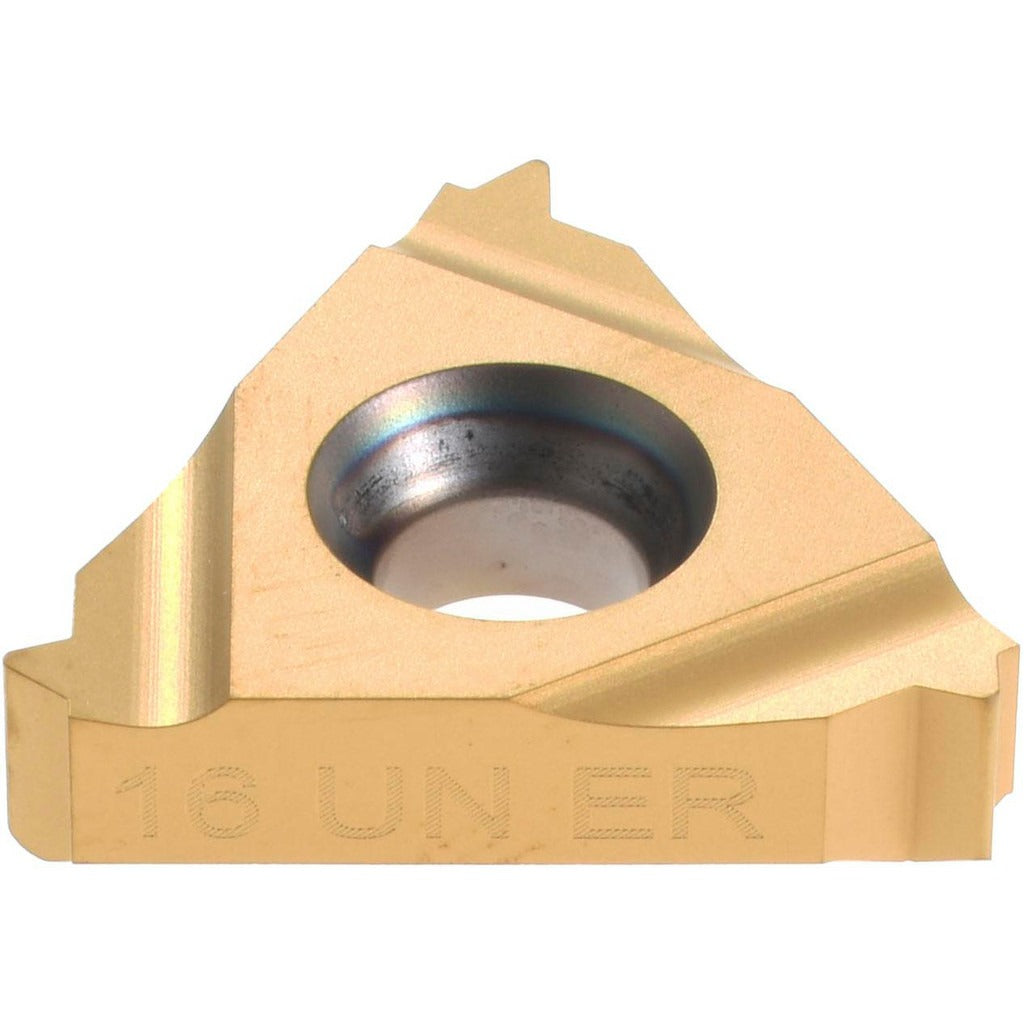

The CARMEX 3/8EXRH16UNP2 is a laydown-style solid carbide threading insert designed for external UN thread cutting at 16 threads per inch. It carries a TiN (titanium nitride) coating applied via PVD process, which improves surface hardness and wear resistance during threading operations. The insert features a 60-degree included angle, a 3/8 inch inscribed circle, and a thickness of 0.146 inches. It is configured for right-hand external threading and fits standard ER-style insert pockets on CNC lathes and turning centers. This insert is specified for use by machinists and tooling technicians running production or job-shop threading passes.

This insert is suited for external UN thread profiles at 16 TPI on CNC turning equipment in both production and repair environments. The P25C grade with TiN coating covers a broad range of workpiece materials, making it viable across steel, cast iron, non-ferrous metals, high-temp alloys, and stainless steel applications. It is commonly used in shops producing threaded shafts, fasteners, and fittings where consistent thread form and tool life are critical. Minimum order quantity is 10 pieces; package quantity is 1.

Key Features

• Laydown insert style with 16 ER designation for compatibility with standard ER-style toolholders
• 16 TPI UN external thread form with 60-degree included angle
• Solid carbide substrate at manufacturer grade P25C for broad material coverage
• PVD-applied TiN coating for enhanced wear resistance and surface hardness
• Right-hand cutting configuration
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in ER-style laydown threading insert pockets on CNC lathes and turning centers capable of external UN thread cutting. Rated for use on workpiece material groups H, K, M, N, P, and S per the input data.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torx or clamp screw driver specified for the toolholder to avoid damaging the insert pocket or seating surface. Verify thread form and pitch with a thread gauge after the first pass before committing to full production run.
