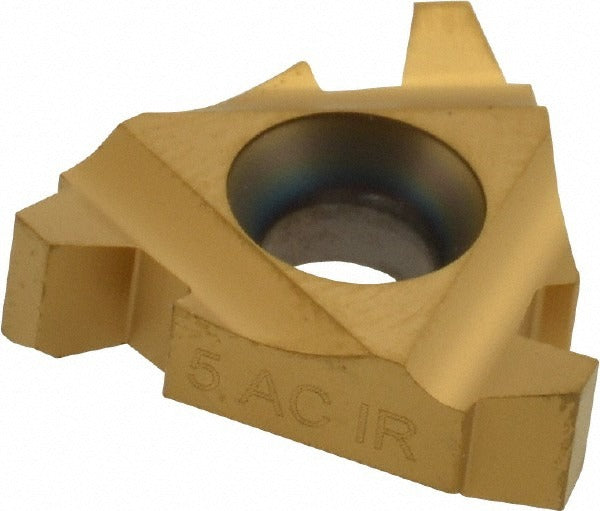

Carmex 22IR5ACMEP25C Laydown Threading Insert 5 Tpi

Product Description

The CARMEX 22IR5ACMEP25C is a solid carbide laydown threading insert designed for cutting internal Acme threads on CNC lathes and threading machines. Rated at 5 threads per inch (TPI), it features a 29-degree included angle matched to the Acme thread form and carries a P25C manufacturer grade with a C5 material grade. The insert is finished with a PVD-applied TiN coating for improved wear resistance and tool life. With a 0.500-inch inscribed circle and a thickness of 0.187 inches, this right-hand insert seats reliably in standard 22IR toolholders. It is installed by machinists and tool-and-die technicians in production threading operations.

This insert is suited for internal Acme thread applications across a universal range of workpiece materials, including ferrous metals, non-ferrous metals, stainless, high-temperature alloys, hardened materials, and plastics. The Acme thread form is commonly specified for lead screws, power transmission components, and jacking mechanisms. The P25C grade supports a broad range of cutting conditions, making this insert a practical choice for both light finishing passes and moderate roughing cuts in internal threading operations.

Key Features

• Solid carbide construction with PVD TiN coating for extended tool life
• 5 TPI Acme thread form with 29-degree included angle
• Right-hand cut, internal thread geometry
• 0.500-inch inscribed circle fits standard 22IR toolholder pockets
• P25C grade (C5 material grade) rated for universal workpiece material compatibility
• Meets CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 22IR-style laydown threading toolholders configured for internal Acme thread cutting at 5 TPI.

Installation Notes

Installation is performed by qualified machinists on CNC or manual lathes. Power down and lock out the machine before seating or replacing inserts. Use the appropriate torx or hex key to the toolholder manufacturer's recommended seating procedure - do not overtighten the clamp screw. Verify thread pitch and insert orientation against the toolholder specification sheet before running the first cut.
