Carmex 22ER6UNBMA Threading Insert 6 Tpi 1/2 Inch Ic Un

Product Description

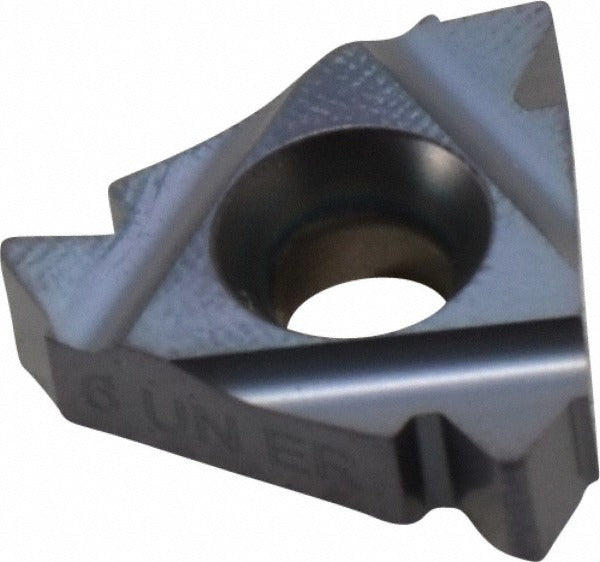

The CARMEX 22ER6UNBMA is a laydown threading insert designed for external UN thread forms at 6 threads per inch. Manufactured from submicron solid carbide with a PVD-applied TiAlN coating, this insert delivers consistent thread profile accuracy and extended tool life in demanding turning applications. The 60-degree included angle matches standard UN thread geometry. With a 1/2 inch inscribed circle and 0.187 inch thickness, this insert fits standard 22 ER style toolholders. It is installed by machinists and CNC lathe operators in production and job-shop environments where unified national thread forms are required on external workpiece features.

This insert suits a broad range of workpiece materials, including ferrous alloys, stainless steels, cast iron, non-ferrous metals, high-temperature alloys, and general-purpose stock - reflected by its universal primary workpiece material classification. Typical applications include threading bolts, studs, shafts, and other externally threaded components in aerospace, automotive, oil and gas, and general manufacturing. The right-hand cutting configuration is the standard orientation for conventional external threading on CNC and manual turning centers. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• Submicron solid carbide substrate for improved wear resistance and edge toughness
• PVD TiAlN coating enhances heat resistance and tool life across a wide range of workpiece materials
• 60-degree included angle for accurate UN thread form geometry
• 6 TPI external right-hand thread cutting configuration
• 1/2 inch inscribed circle fits standard 22 ER laydown toolholders
• Universal material grade suitable for steel, stainless, cast iron, non-ferrous, and high-temperature alloys

Compatibility

Designed for use in 22 ER style laydown threading toolholders. Cuts right-hand external UN thread forms at 6 TPI on a wide range of workpiece materials classified under material codes H, K, M, N, P, and S.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torx or clamping key specified for the toolholder to secure the insert without over-torquing the clamp screw. Verify thread pitch and insert orientation against the job setup before resuming cutting operations.
