Carmex 21-11.5NPTFMT7 Carbide Thread Mill Insert 11.5 Tpi

Product Description

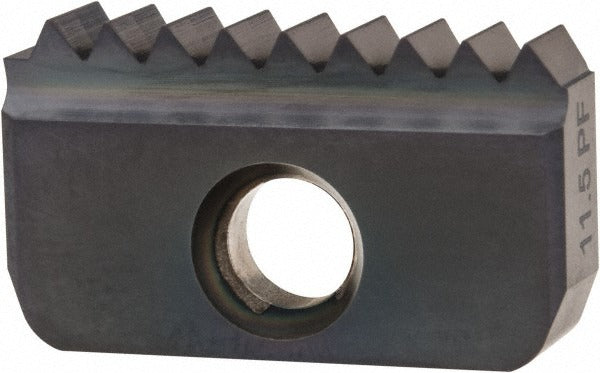

The CARMEX 21-11.5NPTFMT7 is a carbide thread mill insert engineered for cutting NPTF (National Pipe Taper Fuel) threads at 11.5 teeth per inch. Built from submicron carbide in the MT7 grade with a TiAlN finish, this insert handles both internal and external thread milling in a single tool. The conical geometry conforms to ANSI B1.20.3-1976 and produces a pressure-tight pipe thread profile suitable for fuel and hydraulic line connections. Machinists and tool-and-die professionals use it on CNC machining centers where thread milling is preferred over tapping for accuracy and tool life.

This insert is suited for thread milling operations on pipe fittings, manifolds, and fluid-system components requiring NPTF thread forms. Its dual internal and external capability reduces tooling inventory when both thread orientations appear on the same part. At 11.5 TPI, it matches the standard NPTF pitch for sizes ranging through common pipe schedules. The TiAlN coating supports dry or minimal-coolant cutting strategies and extends tool life in ferrous and non-ferrous materials.

Key Features

• Submicron carbide substrate in MT7 grade for consistent edge integrity
• TiAlN finish for thermal resistance and extended tool life
• Cuts both internal and external NPTF threads with one insert style
• Conical geometry per ANSI B1.20.3-1976 for proper pipe thread taper
• 11.5 TPI matches standard NPTF pitch requirements
• Certified to CE, ISO 9001:2015, ISO 13485:2016, ISO 14001:2015, and ISO 45001

Compatibility

Designed as an OEM-style replacement or production insert for thread milling systems accepting 21-series insert style toolholders configured for NPTF pipe thread applications.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine in a fully stopped and locked-out state. Seat the insert securely in the toolholder pocket according to the holder manufacturer torque guidance before spindle engagement. Verify thread program parameters against the NPTF specification before first cut to avoid scrap. Handle carbide inserts carefully to prevent chipping of cutting edges during changeover.
