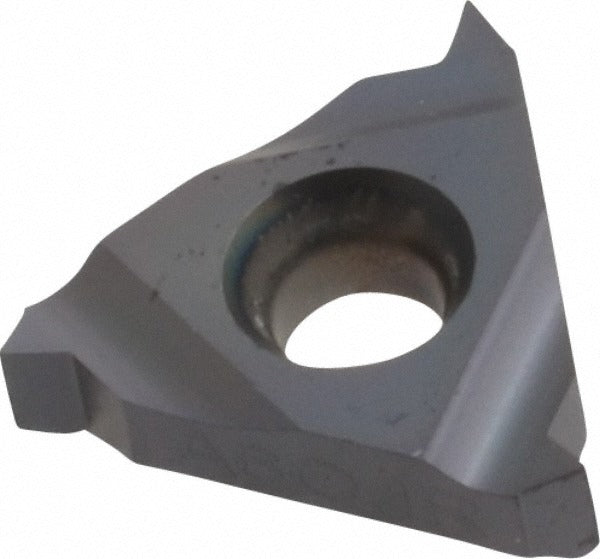

Carmex 16IRA60BMA Threading Insert Carbide 60 Deg Internal

Product Description

The CARMEX 16IRA60BMA is a solid carbide laydown threading insert designed for internal partial profile threading operations. It features a 60-degree included angle and covers a thread range of 48 to 16 TPI, with a metric pitch range of 0.50 to 1.50 mm. The TiAlN coating is applied via PVD process, providing wear resistance across a wide range of workpiece materials. This insert is intended for right-hand internal threading and is installed in compatible laydown-style insert toolholders. Machinists and CNC operators working in production or job-shop environments will find this insert suited for threading steel, stainless, cast iron, non-ferrous, and heat-resistant alloy materials.

This insert is appropriate for both production and general-purpose internal threading applications on CNC lathes and manual lathes equipped with a compatible 16 IR-style toolholder. The universal material grade designation covers a broad range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys. It is well suited for shops threading standard 60-degree thread forms in a variety of materials without the need to change insert geometry.

Key Features

• Solid carbide submicron-grade substrate for edge stability and wear resistance
• TiAlN PVD coating for extended tool life across multiple workpiece material types
• 60-degree included angle covers standard partial profile internal thread forms
• Thread range of 48 to 16 TPI and 0.50 to 1.50 mm pitch in a single insert
• Right-hand cut orientation for standard internal threading setups
• 3/8 inch inscribed circle fits 16 IR-style laydown insert pockets

Compatibility

Designed for use in 16 IR-style laydown threading toolholders accepting a 3/8 inch inscribed circle insert with a 0.1460 inch thickness. Compatible with workpiece material codes H, K, M, N, P, and S per the supplier classification.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before seating or removing the insert. Ensure the insert pocket and clamping surfaces are clean and free of chips before seating. Follow the toolholder manufacturer torque guidelines for the clamping screw - do not overtighten.
