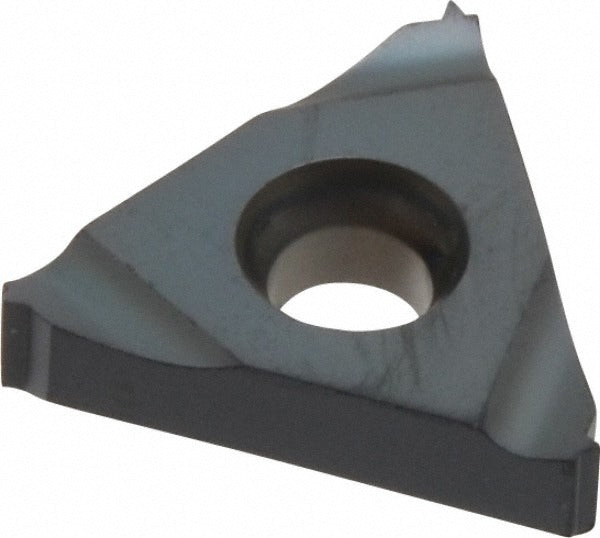

Carmex 16IR32UNBMA Threading Insert 32 Tpi Internal Un

Product Description

The CARMEX 16IR32UNBMA is a solid carbide laydown threading insert designed for internal UN thread forms at 32 threads per inch. The insert is manufactured from submicron solid carbide and finished with a PVD-applied TiAlN coating for extended wear resistance across a broad range of workpiece materials. At 0.375 inches inscribed circle and 0.146 inches thick, the 16IR-style geometry seats in compatible right-hand internal threading toolholders. This insert is installed by CNC machinists and tool-and-die professionals performing precision internal threading operations on lathes and turning centers.

This insert is suited for internal threading applications producing 32 TPI UN-standard thread forms on a wide range of materials. The universal material grade designation covers ferrous and non-ferrous workpiece materials including steel, stainless, cast iron, aluminum, and high-temperature alloys. Right-hand cutting orientation is standard. Typical use cases include threading bores on machined components in general manufacturing, aerospace, and fluid system fabrication where consistent UN thread geometry is required.

Key Features

• Solid submicron carbide substrate for toughness and edge retention in demanding threading passes
• PVD TiAlN coating extends tool life across universal workpiece material grades
• 32 TPI UN internal thread form with 60-degree included angle
• Right-hand cutting orientation for standard lathe and turning center setups
• 0.375 inches inscribed circle fits standard 16IR-style toolholders
• Certified to ISO 13485:2016, ISO 14001:2015, and ISO 45001 quality and environmental standards

Compatibility

Designed for use in 16IR-style internal threading toolholders accepting a 0.375 inches inscribed circle laydown insert with right-hand cutting orientation.

Installation Notes

Installation is performed by qualified machinists on CNC or manual lathes. Ensure the machine spindle is fully stopped and the turret is indexed to a safe position before changing inserts. Seat the insert firmly against the toolholder pocket and secure with the appropriate clamping screw to manufacturer torque specifications. Verify thread pitch and hand before engaging the threading cycle.
