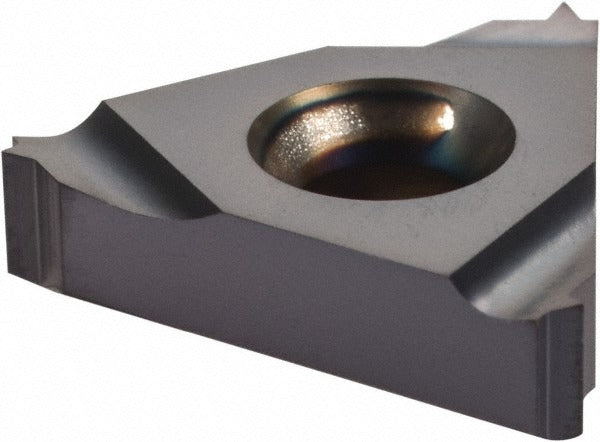

Carmex 16IR24UNBMA Threading Insert 24 Tpi 3/8 in Ic

Product Description

The CARMEX 16IR24UNBMA is a solid carbide laydown threading insert designed for internal UN thread cutting at 24 threads per inch. Finished with a PVD-applied TiAlN coating, the insert delivers wear resistance and thermal stability during threading operations. It carries a 3/8 inch inscribed circle and measures 0.146 inches thick. The BMA manufacturer grade indicates a submicron carbide substrate, suited for consistent performance across a wide range of workpiece materials. This insert is installed by machinists and CNC lathe operators performing internal threading on production or job-shop turning centers.

This insert is appropriate for internal threading applications in both production and maintenance machining environments. The 60-degree included angle and right-hand cutting geometry make it a standard choice for UN-profile internal threads. The universal workpiece material designation covers steel, stainless, cast iron, non-ferrous alloys, and high-temperature alloys, giving this insert broad utility across common turning applications. It is packaged individually and typically sold in minimum quantities of 10 pieces per order.

Key Features

• Solid carbide construction with submicron grain substrate for edge stability
• PVD TiAlN coating for extended tool life and heat resistance
• 24 TPI UN internal thread profile with 60-degree included angle
• Right-hand cutting geometry for standard internal threading direction
• 3/8 inch inscribed circle with 0.1460 inch thickness for laydown-style toolholders
• Universal material grade compatibility covering steel, stainless, cast iron, non-ferrous, and superalloy workpieces

Compatibility

Designed for use in laydown-style internal threading toolholders accepting 16IR series inserts with a 3/8 inch inscribed circle and 0.146 inch thickness.
