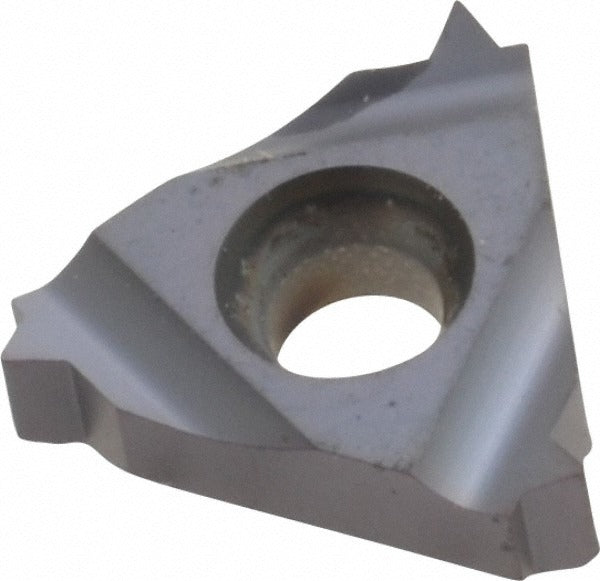

Carmex 16IR12UNBMA Threading Insert 12 Tpi 3/8 in Ic Carbide

Product Description

The CARMEX 16IR12UNBMA is a solid carbide laydown threading insert designed for internal UN thread cutting at 12 threads per inch. The insert carries a TiAlN coating applied via PVD process, providing thermal resistance and wear protection during threading operations. With a 3/8 inch (0.375 inch) inscribed circle and a thickness of 0.146 inches, this insert fits standard laydown-style toolholders used on CNC lathes and manual turning centers. The 60-degree included angle conforms to the unified national thread form. Machinists and CNC operators in production and job-shop environments install this insert for right-hand internal thread profiles.

This insert is suited for threading internal UN profiles in a broad range of workpiece materials. The BMA grade uses a submicron solid carbide substrate with a PVD TiAlN finish, making it compatible with universal material groups including steel, stainless steel, cast iron, non-ferrous alloys, high-temperature alloys, and aluminum. It is appropriate for both light production runs and general-purpose threading where consistent thread form and tool life are required.

Key Features

• Solid carbide submicron substrate with PVD TiAlN coating for extended tool life
• 12 TPI UN internal thread form with 60-degree included angle
• Right-hand cut, laydown insert style for standard IR-series toolholders
• 3/8 inch (0.375 inch) inscribed circle for secure seating in matching pockets
• 0.005 inch corner radius for controlled thread root geometry
• Universal material compatibility across steel, stainless, cast iron, non-ferrous, and superalloy workpieces

Compatibility

Designed as a laydown-style replacement threading insert for 16IR-series internal threading toolholders accepting a 3/8 inch inscribed circle insert. Verify toolholder pocket specifications before installation.

Installation Notes

This insert is installed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the correct torque wrench or clamping screw driver specified by the toolholder manufacturer to seat the insert without cracking the carbide. Inspect the pocket for chips or debris before seating a new insert, and confirm thread direction and hand orientation match the programmed toolpath before resuming cutting.
