Carmex 16ERB16UNBMA Threading Insert 16 Tpi Solid Carbide

Product Description

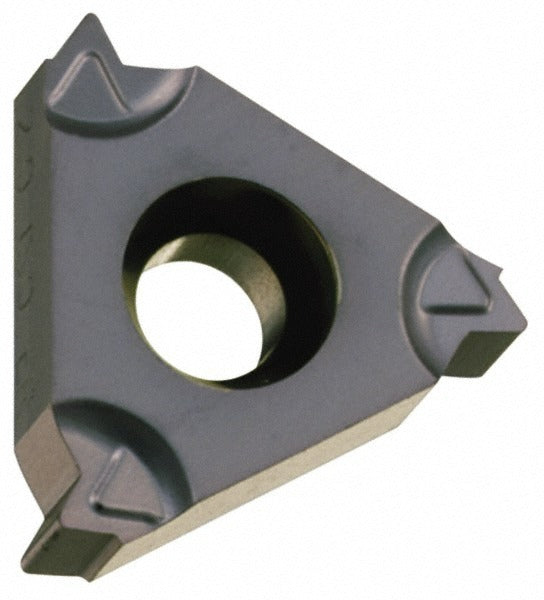

The CARMEX 16ERB16UNBMA is a solid carbide laydown threading insert designed for external UN thread cutting on CNC lathes and turning centers. It operates at 16 threads per inch (TPI) with a 60-degree included angle, making it suited for standard Unified National thread profiles. The insert features a TiAlN coating applied via PVD process and carries the BMA manufacturer grade with a submicron carbide substrate. The 3/8-inch inscribed circle and 0.146-inch thickness conform to the 16ER insert style standard. Machinists and toolroom technicians working in production or job-shop turning operations install this insert into compatible 16ER-style toolholders.

This insert is intended for right-hand external threading across a broad range of workpiece materials. The BMA grade with PVD TiAlN coating supports cutting in universal material groups, including carbon steels, alloy steels, stainless steels, cast irons, non-ferrous metals, and heat-resistant superalloys. It is well suited for both general-purpose production threading and mixed-material job-shop environments where a single insert grade must cover varied stock. The chipbreaker style is B, which aids in chip control during threading passes.

Key Features

• Solid carbide submicron substrate for edge strength and wear resistance
• TiAlN coating via PVD process for thermal and oxidation resistance at the cutting edge
• 16 TPI with 60-degree included angle for standard UN external thread profiles
• Right-hand cutting orientation for conventional external threading operations
• B chipbreaker geometry for improved chip management during threading passes
• Universal material compatibility covering steels, stainless, cast iron, non-ferrous, and superalloys

Compatibility

Designed for use in 16ER-style laydown threading toolholders configured for right-hand external UN thread cutting at 16 TPI.

Installation Notes

Installation is performed by qualified machinists or CNC toolroom technicians. Power down and lock out the machine spindle before seating or replacing the insert. Ensure the toolholder pocket is clean and free of debris before installing the insert, and verify the clamping screw torque is consistent with the toolholder manufacturer specification. Do not use a damaged or chipped insert, as this can affect thread form accuracy and workpiece surface finish.
