Carmex 16ER32UNBMA Threading Insert 32 Tpi Solid Carbide

Product Description

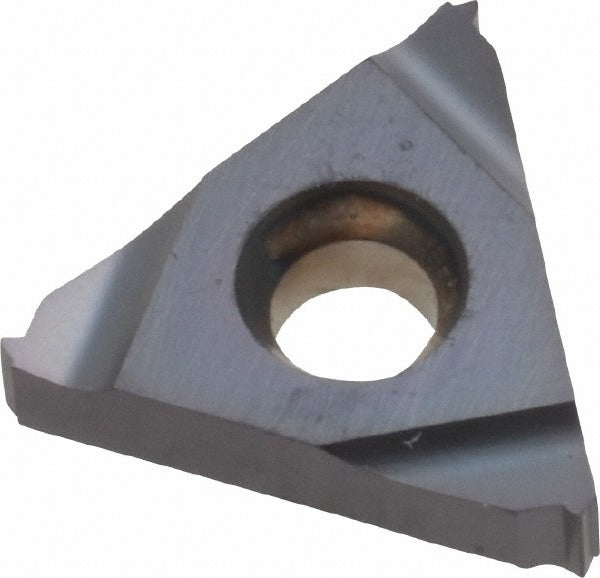

The CARMEX 16ER32UNBMA is a solid carbide laydown threading insert designed for external UN thread-form cutting on CNC lathes and turning centers. It carries a TiAlN coating applied via PVD process, which provides thermal resistance and extended edge life across a wide range of workpiece materials. The insert runs at 32 threads per inch, features a 3/8 inch inscribed circle (0.3750 inches), and measures 0.1460 inches thick. The 60-degree included angle conforms to the Unified National thread standard. This insert is intended for use by machinists and toolroom professionals running production or job-shop threading operations.

This insert is suited for external UN threading on a broad range of materials including steel, stainless steel, cast iron, non-ferrous alloys, high-temperature alloys, and more, as reflected by its universal primary workpiece material designation covering material codes H, K, M, N, P, and S. It is a right-hand insert and seats in compatible 16 ER-style laydown toolholders. Typical applications include threading of shafts, fasteners, fittings, and hydraulic components in both high-volume production and prototype environments.

Key Features

• Solid carbide submicron-grade substrate for rigidity and wear resistance
• TiAlN PVD coating for elevated thermal performance and edge durability
• 32 TPI, 60-degree included angle conforming to the UN thread standard
• Right-hand external thread geometry in the 16 ER insert style
• 3/8 inch (0.3750 inch) inscribed circle with 0.0040 inch corner radius
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 16 ER-style laydown threading toolholders. Compatible across universal workpiece materials designated H, K, M, N, P, and S material codes. Verify toolholder seat geometry and clamping style before installation.

Installation Notes

Threading inserts of this type are installed and replaced by machinists following standard CNC toolholder procedures. Ensure the machine spindle is fully stopped and the toolholder is secured before seating or removing the insert. Use the torque wrench specified by the toolholder manufacturer for the clamping screw - do not over-torque. Inspect the insert seat for chips or debris before installation to ensure proper seating and accurate thread form.
