Carmex 16ER2.0ISOBXC Threading Insert 2.0mm Iso External

Product Description

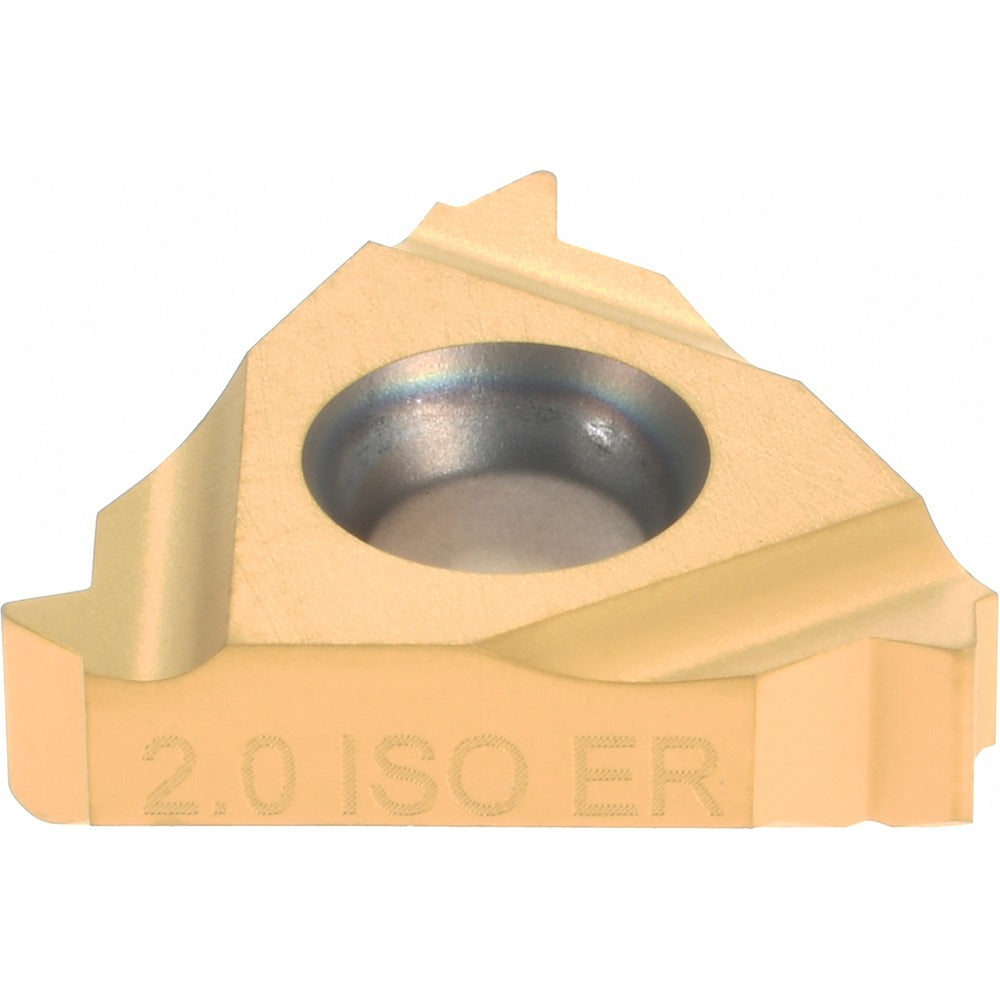

The CARMEX 16ER2.0ISOBXC is a laydown threading insert designed for external ISO thread-turning operations on CNC lathes and turning centers. Made from solid carbide with a TiN-based coating applied via PVD process, it produces a 60-degree included angle thread profile at a 2.0 mm pitch. The 3/8-inch inscribed circle and 0.146-inch thickness conform to the 16 ER insert standard, ensuring direct seating in compatible toolholders. This insert is installed by CNC machinists and toolroom operators in production and job-shop environments where consistent, repeatable thread quality is required.

This insert is suited for external threading on a wide range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous alloys, aluminum, and high-temperature alloys, corresponding to ISO material groups H, K, M, N, P, and S. It performs in both light-production and high-volume turning applications where ISO metric thread profiles are specified. Right-hand cutting geometry makes it the standard choice for conventional forward-turning thread passes.

Key Features

• Solid carbide substrate with PVD-applied TiN coating for wear resistance across a broad material range
• 2.0 mm pitch, 60-degree included angle external ISO thread profile
• Right-hand cutting geometry for standard forward thread-turning passes
• 3/8-inch inscribed circle, 0.146-inch thickness - conforms to 16 ER insert standard
• Universal grade BXC rated for ISO material groups H, K, M, N, P, and S
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct-fit insert for 16 ER-style laydown threading toolholders that accept a 3/8-inch inscribed circle insert with 0.146-inch thickness and an external ISO thread geometry.

Installation Notes

Installation is performed by qualified CNC operators or toolroom machinists. Power down and lock out the machine spindle before indexing or replacing inserts. Seat the insert fully and flat against the toolholder pocket before torquing the clamping screw to the toolholder manufacturer's specification. Inspect the insert edge and seating pocket for chips or debris before each use to ensure accurate thread form and prevent premature insert failure.
