Carmex 16ER18NPTMXC/G Threading Insert 18 Tpi Npt

Product Description

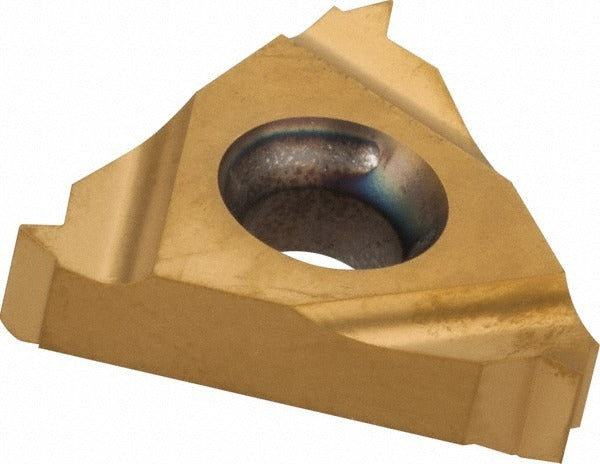

The CARMEX 16ER18NPTMXC/G is a laydown-style threading insert designed for cutting external NPT threads at 18 threads per inch. Manufactured from solid carbide micrograin substrate with a PVD-applied TiN coating, it delivers consistent thread form and extended tool life across a wide range of workpiece materials. The insert carries a 30-degree included angle and is produced in a right-hand configuration. Measuring 0.375 inches inscribed circle and 0.146 inches thick, the 16ER geometry seats in standard 16ER toolholders. This insert is used by machinists and CNC operators in production and job-shop environments.

This insert is suited for external NPT threading operations on materials including steel, stainless steel, cast iron, aluminum, non-ferrous metals, and high-temperature alloys, as reflected by the universal workpiece material classification. It is commonly installed in CNC lathes and manual threading setups where pipe thread form accuracy and sealing thread geometry are required. The MXC grade and micrograin carbide construction make it appropriate for both continuous and interrupted threading passes where edge toughness matters.

Key Features

• Solid carbide micrograin substrate for edge integrity and dimensional consistency
• PVD TiN coating applied via physical vapor deposition for wear resistance and reduced friction
• 30-degree included angle for accurate NPT external thread form
• Right-hand cut, 18 TPI for standard NPT pipe thread applications
• Universal material grade compatibility covering steel, stainless, cast iron, aluminum, and superalloys
• Meets CE and ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct-fit insert for standard 16ER-style external threading toolholders used in NPT thread cutting applications.
