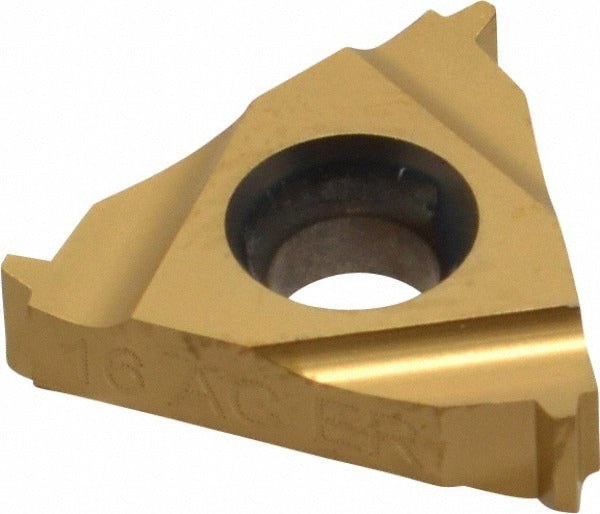

Carmex 16ER16ACMEBXC Threading Insert 16 Tpi Acme Carbide

Product Description

The CARMEX 16ER16ACMEBXC is a solid carbide laydown threading insert designed for cutting external Acme threads at 16 threads per inch. The insert features a 29-degree included angle, a TiN coating applied via PVD process, and a right-hand cutting orientation. With a 3/8-inch inscribed circle and a thickness of 0.146 inches, it is built to tight dimensional tolerances for repeatable thread form accuracy. This insert is intended for use on CNC lathes and threading machines in professional machining and manufacturing environments. Grade BXC provides a balance of hardness and edge retention suited to a wide range of workpiece materials.

This insert is rated for universal primary workpiece material compatibility, covering material codes H, K, M, N, P, and S. Typical applications include cutting Acme lead screw threads, power transmission components, and linear actuator elements on both ferrous and non-ferrous materials. It is suited for production shops, tool rooms, and maintenance machining operations where Acme thread forms are required on external diameters.

Key Features

• Solid carbide substrate with PVD-applied TiN coating for extended tool life
• Right-hand external Acme thread form at 16 TPI with 29-degree included angle
• 3/8-inch inscribed circle for compatibility with standard 16-size toolholders
• 0.146-inch insert thickness for stable seating in laydown-style pockets
• Universal material compatibility across H, K, M, N, P, and S workpiece material codes
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in laydown-style threading toolholders accepting 16 ER insert geometry with a 3/8-inch inscribed circle. Compatible with workpiece materials spanning material codes H, K, M, N, P, and S per the manufacturer classification.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer torque and seating requirements for 16 ER laydown inserts. Power down and lock out the machine before changing inserts. Use the correct torx or clamping wrench specified by the toolholder manufacturer to avoid seat damage. Inspect the insert pocket and clamping components for wear or debris before seating a new insert.
