Carmex 16ER14UNBMA Threading Insert 14 Tpi Solid Carbide

Product Description

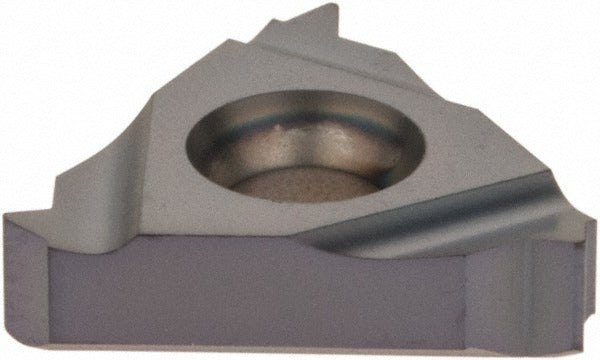

The CARMEX 16ER14UNBMA is a solid carbide laydown threading insert designed for external UN thread form cutting at 14 threads per inch. Manufactured from submicron-grade solid carbide with a PVD-applied TiAlN coating, this insert delivers consistent thread geometry on a wide range of workpiece materials. The 60-degree included angle matches the standard UN thread profile, and the right-hand orientation suits conventional external threading operations on CNC lathes and turning centers. Licensed machinists and toolroom technicians install this insert into compatible ER-style laydown toolholders for production threading work.

This insert is suited for external threading applications across universal workpiece material categories including ferrous, non-ferrous, stainless, heat-resistant alloys, and cast materials, corresponding to material codes H, K, M, N, P, and S. It is appropriate for both high-production CNC turning environments and job-shop threading operations where repeatable thread quality is required. The 3/8-inch inscribed circle and 0.146-inch thickness conform to the 16ER insert size standard.

Key Features

• Solid submicron carbide substrate for wear resistance and edge stability
• PVD TiAlN coating provides thermal and abrasion resistance across universal workpiece materials
• 14 TPI UN thread form with 60-degree included angle for standard unified thread profiles
• Right-hand external thread orientation for conventional CNC lathe setups
• 3/8-inch inscribed circle with 0.146-inch thickness per 16ER insert standard
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed to seat in ER-style laydown threading toolholders accepting the 16ER insert size with a 3/8-inch inscribed circle. Compatible workpiece material codes include H, K, M, N, P, and S per manufacturer classification.

Installation Notes
