Carmex 16ER12ACMEMXC Threading Insert 12 Tpi Acme Carbide

Product Description

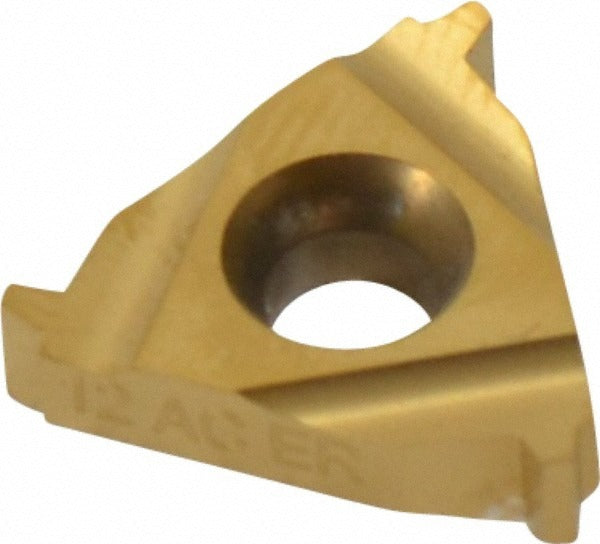

The CARMEX 16ER12ACMEMXC is a solid carbide laydown threading insert designed for external Acme thread cutting at 12 threads per inch (TPI). It features a 29-degree included angle and a TiN coating applied via PVD process, which improves surface hardness and wear resistance during threading operations. The insert measures 0.375 inches inscribed circle and 0.146 inches thick. Right-hand geometry makes it suitable for standard external threading passes. Machinists and CNC operators install this insert into compatible toolholders for single-point threading on lathes and turning centers handling Acme-profile threads.

This insert is suited for a wide range of workpiece materials, including ferrous metals, stainless and heat-resistant alloys, cast iron, non-ferrous metals, and high-temperature materials, consistent with material codes H, K, M, N, P, and S. Typical applications include lead screws, power screws, and jack screws where the Acme thread form is required. It is appropriate for both production and repair threading in job shop and manufacturing environments.

Key Features

• Solid carbide micrograin substrate for rigidity and edge retention
• TiN coating via PVD process for improved wear resistance
• 12 TPI external Acme thread profile with 29-degree included angle
• Right-hand cutting geometry for standard threading direction
• 3/8-inch (0.375 inches) inscribed circle, 0.146 inches thick
• Universal material grade suitability across ferrous and non-ferrous workpieces

Compatibility

Compatible with toolholders accepting the 16ER insert style for external Acme threading applications. Suitable for workpiece material grades H, K, M, N, P, and S as designated by the supplier.

Installation Notes

This insert is installed by a qualified machinist or CNC operator into a compatible 16ER-style external threading toolholder. Power down and lock out the machine before changing inserts. Ensure the insert seat and clamping surfaces are clean and free of chips before seating. Verify thread pitch and toolholder alignment against the workpiece specification before beginning a threading pass.
