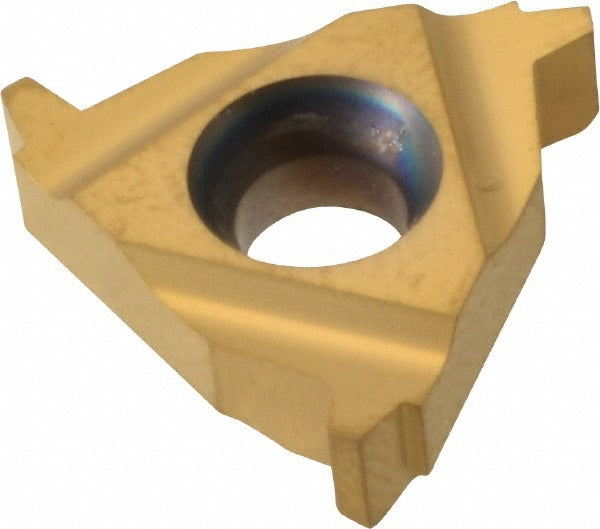

Carmex 16ER10ACMEMXC Threading Insert 10 Tpi Acme Carbide

Product Description

The CARMEX 16ER10ACMEMXC is a solid carbide laydown threading insert designed for external ACME thread cutting at 10 threads per inch (TPI). It features a 29-degree included angle consistent with ACME thread form geometry and a PVD-applied TiN coating for extended tool life across a wide range of workpiece materials. The insert carries a 3/8-inch inscribed circle and measures 0.146 inches thick. It is suited for use on CNC lathes and manual threading setups where precision thread form accuracy is required. Machinists and tooling technicians in production and job-shop environments are the primary users of this insert type.

This insert is intended for right-hand external ACME thread applications. Its universal material grade designation covers a broad spectrum of workpiece materials including cast iron, non-ferrous alloys, stainless steel, steel, and heat-resistant superalloys. The MXC micrograin carbide grade provides a balance of toughness and wear resistance appropriate for threading interrupted cuts and continuous-feed ACME profiles on lead screws, jack screws, and similar components.

Key Features

• Solid carbide micrograin substrate for consistent edge integrity and wear resistance
• PVD TiN coating applied for reduced friction and extended insert life
• 29-degree included angle machined to ACME thread standard geometry
• Right-hand external thread orientation for standard lathe setups
• 10 TPI pitch suited for ACME lead screw and power screw applications
• Universal primary workpiece material compatibility across cast iron, steel, stainless, non-ferrous, and superalloy materials

Compatibility

Designed as a laydown-style threading insert for toolholders accepting the 16ER insert style. Compatible with universal workpiece material codes H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

Installation is performed by qualified machinists or tooling technicians on CNC or manual lathes. Power down the machine and engage all lockouts before seating or replacing inserts. Ensure the toolholder pocket is clean and free of chips before inserting to avoid seating errors that affect thread form accuracy. Do not exceed the recommended depth-of-cut or feed rate specified by the toolholder manufacturer for this insert style.
