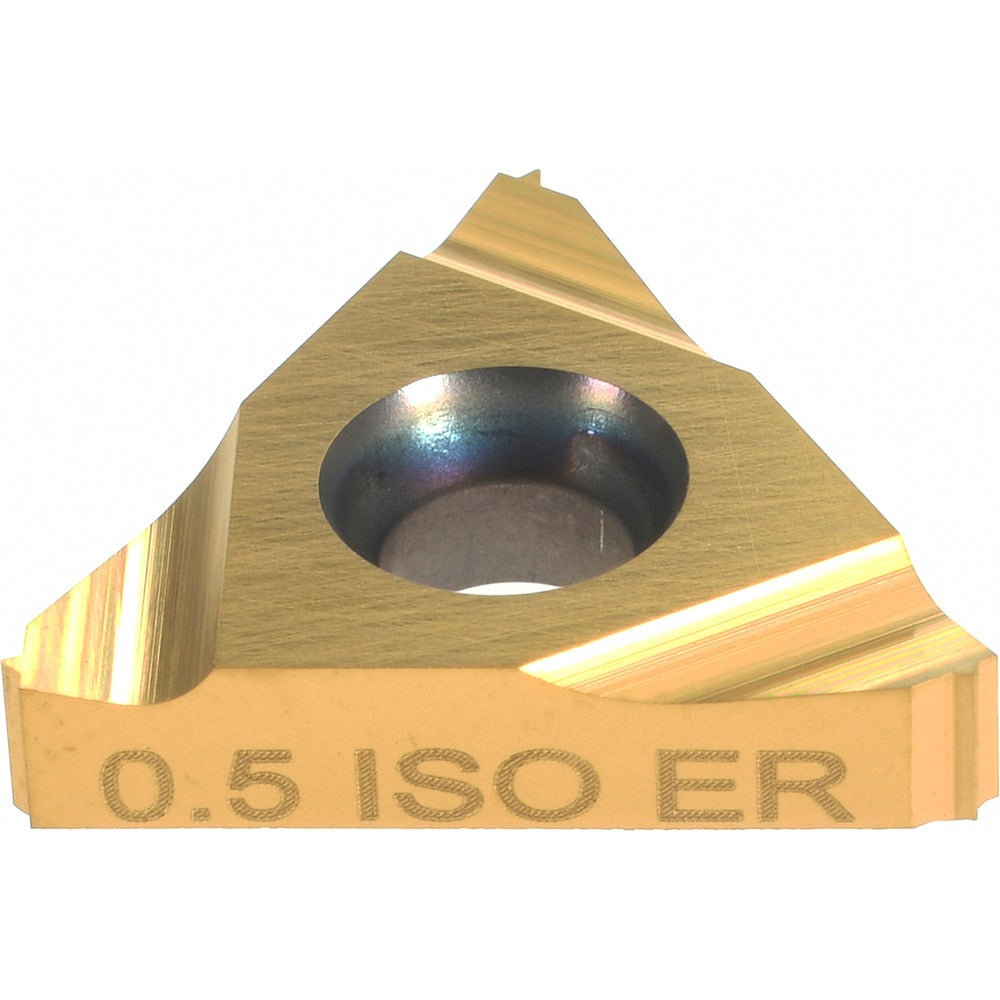

Carmex 16ER0.5ISOMXC Laydown Threading Insert 0.5mm Iso

Product Description

The CARMEX 16ER0.5ISOMXC is a solid carbide laydown threading insert designed for external ISO thread forms with a 0.5 mm pitch and a 60-degree included angle. Manufactured from micrograin carbide with a PVD-applied TiN coating, this insert delivers consistent thread geometry and extended tool life across a broad range of workpiece materials. It carries a right-hand cutting orientation and fits toolholders accepting the 16 ER insert style. Licensed machinists and CNC lathe operators use this insert for precision external threading on turned components in production and job-shop environments.

This insert is suited for both light-production and high-volume external threading operations on lathes and turning centers. The universal material grade designation makes it applicable across ferrous and non-ferrous workpieces, including steel, cast iron, stainless, non-ferrous alloys, high-temp alloys, and aluminum. The 0.5 mm pitch targets fine-thread applications common in automotive, aerospace, and general machining. An inscribed circle of 0.375 inches and a thickness of 0.146 inches conform to standard 16 ER toolholder seating geometry.

Key Features

• Solid micrograin carbide substrate for improved edge strength and wear resistance
• PVD TiN coating applied for reduced friction and extended cutting life
• 0.5 mm pitch ISO external thread form with 60-degree included angle
• Right-hand cutting orientation, 16 ER insert style
• Universal workpiece material compatibility: H, K, M, N, P, S material groups
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as a direct-fit replacement for 16 ER style external threading toolholders accepting a 0.375-inch inscribed circle insert with 0.5 mm ISO pitch geometry.
