Carmex 16ER/IL0.055BXC Grooving Insert Solid Carbide Tin

Product Description

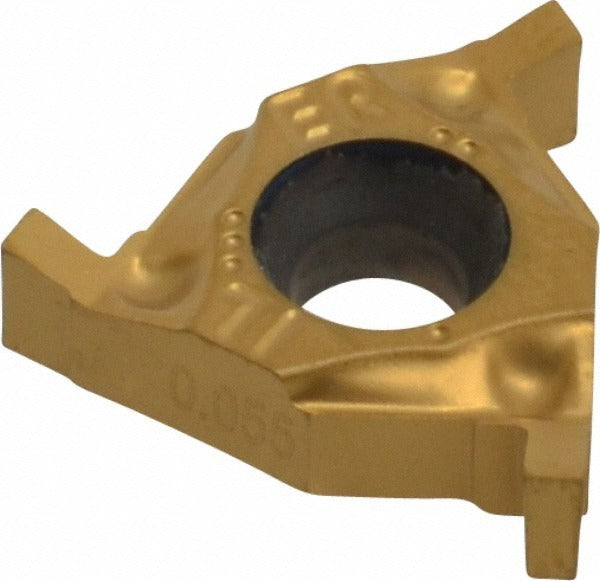

The CARMEX 16ER/IL0.055BXC is a solid carbide grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Part of the Series 16 lineup, this insert carries a TiN coating applied via PVD process and is offered in manufacturer grade BXC, material grade C6. It delivers a 0.055 inch cutting width with a maximum depth of cut of 0.071 inches. The positive rake angle of 15 degrees reduces cutting forces, making it well suited for finishing passes on cast iron and steel workpieces. Machinists and CNC operators in production and job shop environments install this insert as a direct drop-in for Series 16 compatible toolholders.

This insert is intended for grooving cast iron and steel workpieces in both external and internal applications. Its left-hand and right-hand compatibility adds flexibility across multiple setups without changing toolholders. The 3/8 inch inscribed circle and 0.157 inch hole diameter conform to ISO standards, making this a straightforward fit for ISO-compliant Series 16 tooling systems used in production turning, threading preparation, and groove-finishing operations on CNC equipment.

Key Features

• Solid carbide construction in manufacturer grade BXC, material grade C6 for durability on ferrous materials
• TiN coating applied by PVD process for improved wear resistance and surface finish
• 0.055 inch cutting width with a maximum depth of cut of 0.071 inches
• Positive 15-degree rake angle reduces cutting forces during grooving passes
• Compatible with both left-hand and right-hand orientations for flexible setup
• ISO-standard geometry with 3/8 inch inscribed circle and 10-degree external / 15-degree internal relief angles

Compatibility

Designed for use with ISO-compliant Series 16 grooving toolholders. Primary workpiece materials are cast iron (ISO material code K) and steel (ISO material code P).

Installation Notes

Installation is performed by qualified CNC machinists or toolroom personnel. Power down and lock out the machine spindle before seating or removing inserts. Use the correct torque wrench and clamp screw specified by the toolholder manufacturer - do not overtighten, as solid carbide inserts are brittle and can crack under excess clamping force. Verify insert seating and orientation before returning the machine to operation.
