Carmex 11IRA60BMA Threading Insert Solid Carbide 60 Degree

Product Description

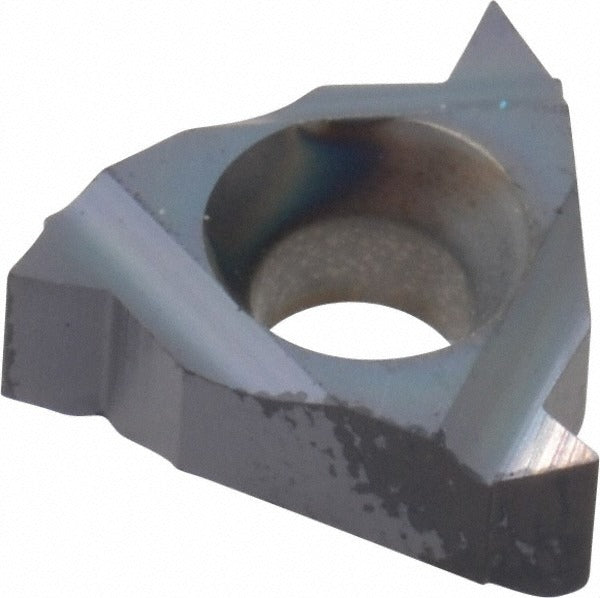

The CARMEX 11IRA60BMA is a solid carbide laydown threading insert designed for internal partial-profile threading operations. It cuts a 60-degree included angle thread and covers a range of 48 to 16 TPI, making it suitable for a wide variety of thread sizes in a single insert. The BMA grade uses a submicron carbide substrate with a PVD-applied TiAlN coating, delivering strong wear resistance and edge stability across a broad range of workpiece materials. Right-hand cutting geometry suits standard internal thread applications on lathes and turning centers. Machinists, toolroom operators, and CNC turning specialists will encounter this insert in production and job-shop environments alike.

The 11IRA60BMA is intended for right-hand internal threading on CNC lathes and manual turning equipment. The partial-profile design allows the insert to produce a range of thread pitches from 0.50 mm to 1.50 mm (48 to 16 TPI) without requiring a dedicated insert for each pitch. Its universal material grade designation covers steel, stainless steel, cast iron, aluminum, non-ferrous alloys, and high-temperature alloys, reducing tooling inventory requirements in mixed-material shops. The TiAlN coating supports dry or minimal-lubrication cutting where conditions allow.

Key Features

• Solid carbide submicron substrate (BMA grade) for high edge integrity and extended tool life
• PVD TiAlN coating provides heat and wear resistance across universal workpiece material groups
• 60-degree included angle partial profile covers 48 to 16 TPI (0.50 to 1.50 mm pitch) in one insert
• Right-hand internal threading geometry for standard bore threading on lathes and turning centers
• 1/4-inch inscribed circle (0.2500 inches) with 0.1270-inch thickness for 11-size insert holders
• Manufactured to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 11IR-style laydown threading insert holders that accept a 1/4-inch inscribed circle, 0.1270-inch thick insert. Verify holder clamping system and seat geometry before installation.
