Carmex 11IR14NPTP25C Threading Insert 14 Npt Solid Carbide

Product Description

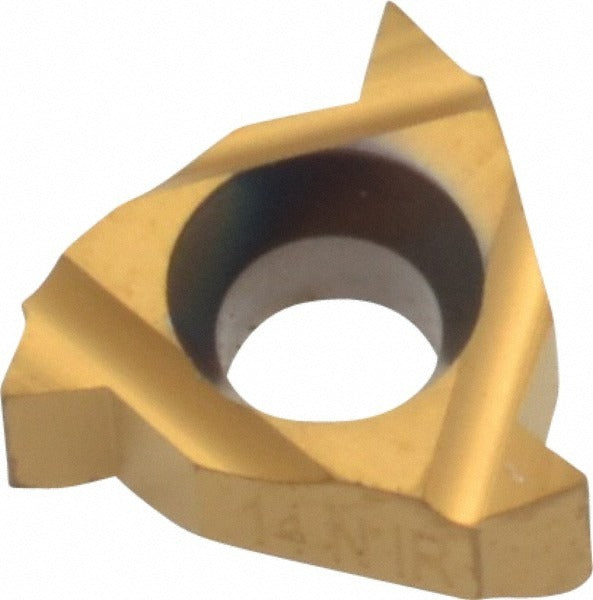

The CARMEX 11IR14NPTP25C is a solid carbide laydown threading insert designed for internal right-hand NPT thread cutting at 14 threads per inch. Manufactured to an 11IR style with a 1/4 inch (0.2500 inch) inscribed circle and a thickness of 0.127 inches, this insert is built for precision threading in ferrous and non-ferrous materials. The P25C manufacturer grade with C5 material grade and PVD-applied TiN coating deliver extended tool life and consistent thread form across a broad range of workpiece materials. The 30-degree included angle and zero relief angle are matched to standard NPT thread geometry for leak-free pipe joint results.

This insert suits CNC lathes and manual turning centers performing internal NPT threading operations on pipe fittings, manifolds, valve bodies, and hydraulic components. It is suited for universal workpiece materials spanning multiple material groups including cast iron, non-ferrous alloys, stainless steel, heat-resistant superalloys, and steel. Machinists and tool-and-die shops working to plumbing and instrumentation fitting standards will find this insert a direct fit for standard 11IR toolholders.

Key Features

• Solid carbide construction at P25C grade for wear resistance in demanding threading applications
• PVD TiN coating extends cutting edge life and reduces built-up edge on a wide range of materials
• 14 TPI NPT internal thread form with 30-degree included angle for standard pipe thread geometry
• 1/4 inch inscribed circle (0.2500 inch) in 11IR style for compatibility with standard laydown threading toolholders
• Right-hand cut orientation for conventional spindle-forward threading operations
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 quality and safety standards

Compatibility

Designed as an OEM-style replacement or direct-fit insert for standard 11IR internal threading toolholders used in NPT pipe thread applications.

Installation Notes

Installation is performed by machinists or CNC operators. Power down and lock out the machine spindle before seating or indexing the insert. Use the correct torx or hex key as specified by the toolholder manufacturer to secure the insert clamp to the recommended seating torque for that holder. Inspect the insert pocket for chips or wear before mounting to ensure proper seating and thread form accuracy.
