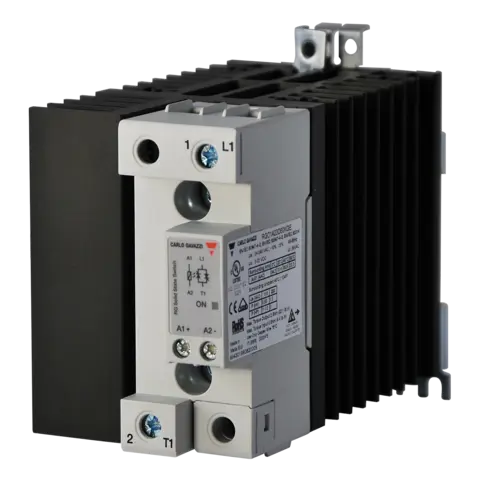

Carlo Gavazzi RGC1A60D60KGE Solid State Relay 60A

Product Description

The CARLO GAVAZZI RGC1A60D60KGE is a 1-pole DIN-rail mount solid state relay (SSR) with E-layout and zero-cross switching. It features an operating voltage of 42 - 660 Vac (1200 Vp), a rated current of 60 Aac, and a control voltage of 4 - 32 Vdc. Built-in overvoltage protection enhances its durability.

• 1-pole DIN-rail mount SSR
• Zero-cross switching
• Built-in overvoltage protection

Product Highlights

Solid state relay with zero-cross switching and built-in overvoltage protection.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: RGC1A60D60KGE

Technical Specifications

• Output switching mode: Zero cross
• Number of poles: 1
• Rated current AC-51: 60 A
• Rated current AC-53a: 14.8 A
• Operating voltage: 42 V ... 660 V
• Control voltage DC: 4 V ... 32 V
• Power connection: Box clamp
• Brand: Carlo Gavazzi, Inc.
• Contact Current Rating: 60 A
• Contact Form: SPST-NO
• Current Rating: 60 A
• Function: Zero-Switching
• Manufacturer Part Number: RGC1A60D60KGE
• Mounting Type: DIN Rail Mount
• Phase: 1 Phase
• Series: RG Series
• Type: Solid State Contactor
• Voltage Rating: 42 to 660 V
• Category: Relays
• Output Type: AC, Zero Cross
• Manufacturer: Carlo Gavazzi Inc.
• Load Current: 60 A
• Voltage - Input: 4 ~ 32VDC
• Voltage - Load: 42 ~ 660V
• Termination Style: Screw Terminal
• Package / Case: SSR with Integrated Heat Sink
• Circuit: SPST-NO (1 Form A)
• Product Type: Solid State Relay with Integrated Heat Sink
• Manufacturer Series: 710
