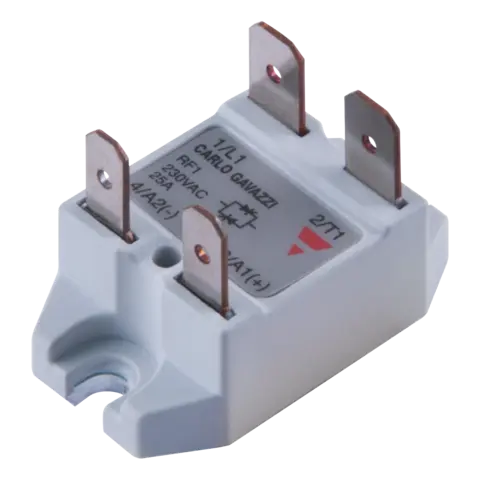

Carlo Gavazzi RF1A23D25 Solid State Relay 25 AAC

Product Description

The CARLO GAVAZZI RF1A23D25 is a solid state relay designed for controlling electrical loads. It is a 1-pole panel mount SSR with zero-cross switching and an operating voltage of 24 - 280 Vac. The relay has a rated current of 25 Aac and a control voltage of 18 - 28.8 Vdc and built-in overvoltage protection.

• 1-pole panel mount SSR
• Zero-cross switching
• Built-in overvoltage protection

Product Highlights

Compact solid state switching solution suited for confined spaces with long life time.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: RF1A23D25
• Country of Origin: Italy

Technical Specifications

• Output switching mode: Zero cross
• Number of poles: 1
• Rated current AC-51: 25 A
• Operating voltage: 24 V ... 280 V
• Control voltage DC: 18 V ... 28.8 V
• Power connection: Fastons
• Brand: Carlo Gavazzi, Inc.
• Contact Form: SPST-NO
• Control Voltage: 18-28.8 VDC
• Current Rating: 25 A
• Function: Zero-Switching
• Manufacturer Part Number: RF1A23D25
• Mounting Type: Panel Mount
• Number of Pins: 4
• Primary Type: Solid State Relays
• Relay Type: Photo-Coupled Relay (Photorelay)
• Series: RF1A
• Special Features: Pre-attached thermal pad
• Termination: QC Tabs
• Voltage Rating: 24-280 V
• Category: Relays
• Solid State Relays (SSR): Solid State Relays (SSR)
• Voltage - Input: 18 ~ 28.8VDC
• Voltage - Load: 24 V ~ 280 V
• Load Current: 25 A
• Packaging: Bulk
• Termination Style: Quick Connect - 0.187"/0.250"
• Part Status: Active
• Operating Temperature: -30 C ~ 80 C
• Mounting: Screw
• Package / Case: Hockey Puck
• Approval Agency: CE, CSA, cURus, EAC, VDE
• Circuit: SPST-NO (1 Form A)
• Base Product Number: RF1A23
• Output Type: AC, Zero Cross
• Model: RF1A23D25
• MPN: RF1A23D25
• Country of Origin: Italy
• Supplier: Carlo Gavazzi
• Part No: RF1A23D25
• RoHS: Yes
• Maximum Output Voltage: 600 V
• Output Device: Triac
• Input Type: DC
• Circuit Arrangement: 1 Form A
