Carlin Combustion Technology 90000BL2S Ez-Temp Micro Temp Control W/Sensor And Well

Product Description

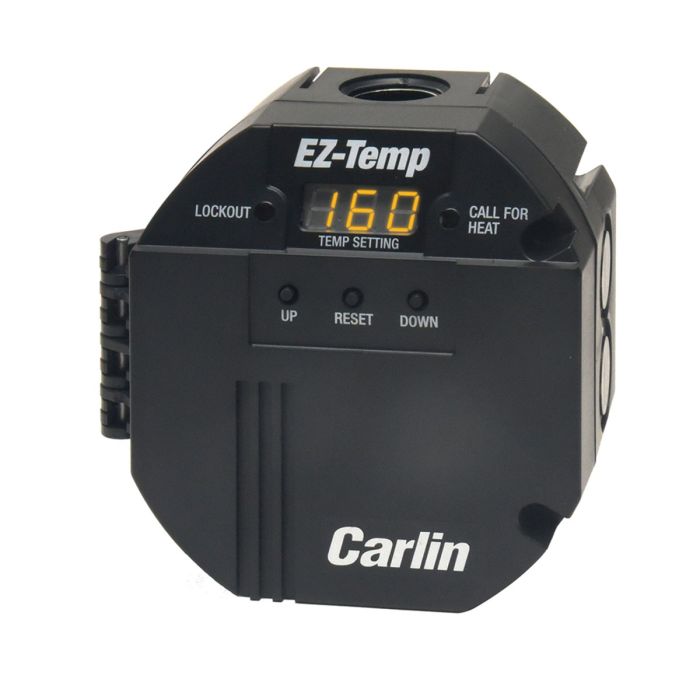

The CARLIN COMBUSTION TECHNOLOGY 90000BL2S is a water heater temperature control featuring dual limit and manual reset. Used on water heaters, it includes a J-Box, 2.4 inch length 98861B well, 98917A single sensor, and mounting hardware. It has a temperature rating of 100 to 160 Deg F and 8 Deg F (Differential) Limit Rating, 180 Deg F and 10 Deg F (Differential) High Limit and conforms to UL standards.

• Dual Limit
• Manual Reset
• Includes J-Box, well, sensor, and mounting hardware

Product Highlights

Temperature control with dual limit for direct fired storage water heaters. Includes sensor and well.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 90000BL2S

Technical Specifications

• CATALOG NUMBER: 90000BL2S
• Description: Water Heater Temperature Control; Item Temperature Control, Dual Limit, Manual Reset; Used On Water Heater; Temperature Rating 100 to 160 Deg F and 8 Deg F (Differential) Limit Rating, 180 Deg F and 10 Deg F (Differential) High Limit; Includes J-Box, 2.4 Inch Length 98861B Well, 98917A Single Sensor and Mounting Hardware; Applicable Standard UL
• Features/Benefits: Bock Residential Recommended Temperature Range Service Pak-Dual Limit (Operating Limit and Manual Reset High Limit) Temperature Control for Direct Fired Storage Water Heaters
• Item: Temperature Control, Dual Limit, Manual Reset
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 90000BL2S
• Series/Model: 9000
• Used On: Water Heater
• Temperature Rating: 100 to 160 Deg F and 8 Deg F (Differential) Limit Rating, 180 Deg F and 10 Deg F (Differential) High Limit
• Includes: J-Box, 2.4 Inch Length 98861B Well, 98917A Single Sensor and Mounting Hardware
• Applicable Standard: UL
• Type of Product: Aquastat
• Biofuel Compatible: Yes
