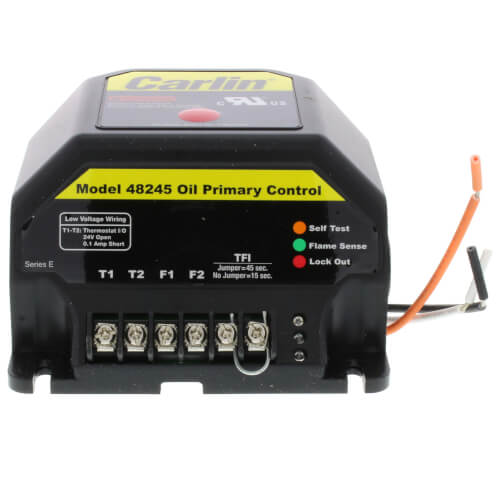

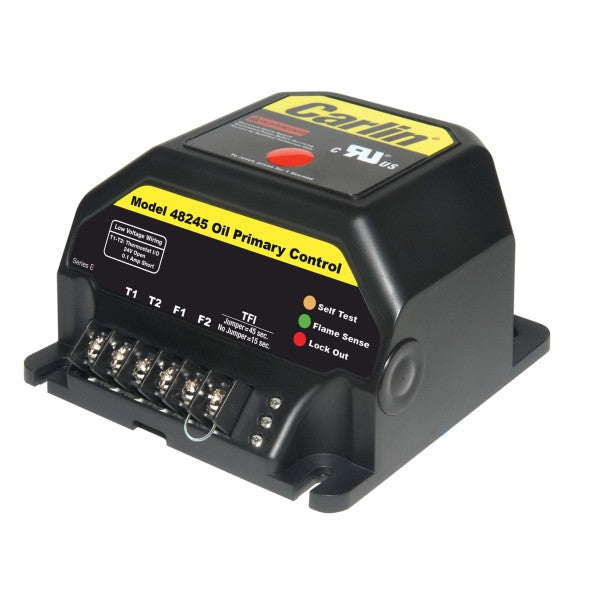

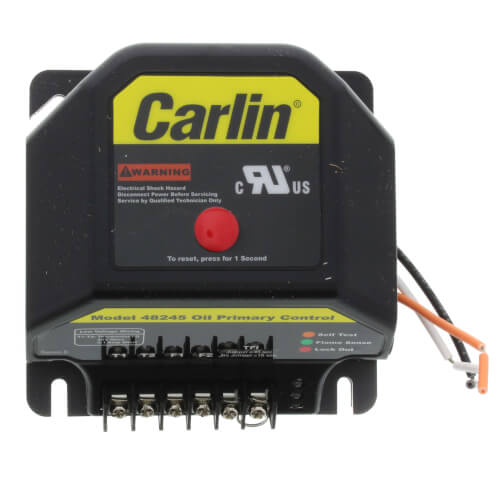

Carlin Combustion Technology 48245S Control 4X4 45-Sec

Product Description

The CARLIN COMBUSTION TECHNOLOGY 48245S is a burner primary control designed for constant/intermittent duty. It is used on EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD oil burners and features a 45-second trial for ignition and smart ignition. This control serves as a direct replacement for 3-wire primary controls and incorporates Safety Monitoring Circuit (SMC) Technology.

• Primary Control
• Constant/Intermittent Duty
• Used On EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD Oil Burner

Product Highlights

Features a 45-second trial for ignition and smart ignition. Compatible with thermostat/aquastat.

Product Information

Standard Information

• Brand: CARLIN COMBUSTION TECHNOLOGY
• Manufacturer Part Number: 48245S
• Country of Origin: United States

Technical Specifications

• Item: Primary Control, Constant/Intermittent Duty
• Additional Information: Trial for Ignition 45 Second; Includes Smart Ignition
• CATALOG NUMBER: 48245S
• Category: HVAC/R & Fans
• Description: Burner Primary Control; Item Primary Control, Constant/Intermittent Duty; Used On EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD Oil Burner; Trial for Ignition 45 Second; Includes Smart Ignition
• Manufacturer Name: Carlin Combustion Technology
• Manufacturer Part Number: 48245S
• UNSPSC Code: 40101800
• Used On: EZ1/EZ2/EZ3/EZ66/99FRD/100CRD/102CRD Oil Burner
• Trial for Ignition: 45 Second
• Includes: Smart Ignition
• Product Type: Oil Control
• TFI (secs): Selectable 45 or 15
• Pre purge: N/A
• Post purge: N/A
• Recycles: Yes
• Ignition Type: Intermittent Smart Ignition
• Power Input (From Limit Circuit): 120 vac, 60 Hz, 10 VA
• Motor Load: 10 FLA, 60 LRA
• Ignitor Load: 120 vac, 60 Hz, 500 VA
• Operating Temperature Limits: +32ºF to +140ºF
• Storage Temperature Limits: -40ºF to +185ºF
• Thermostat Anticipator Current: 0.1 A, AC
• Agencies: UL & ULC Recognized Component United States & Canada
• Input (From Limit Circuit): 120 vac, 60 Hz, 10 VA
• Brand: CARLIN
