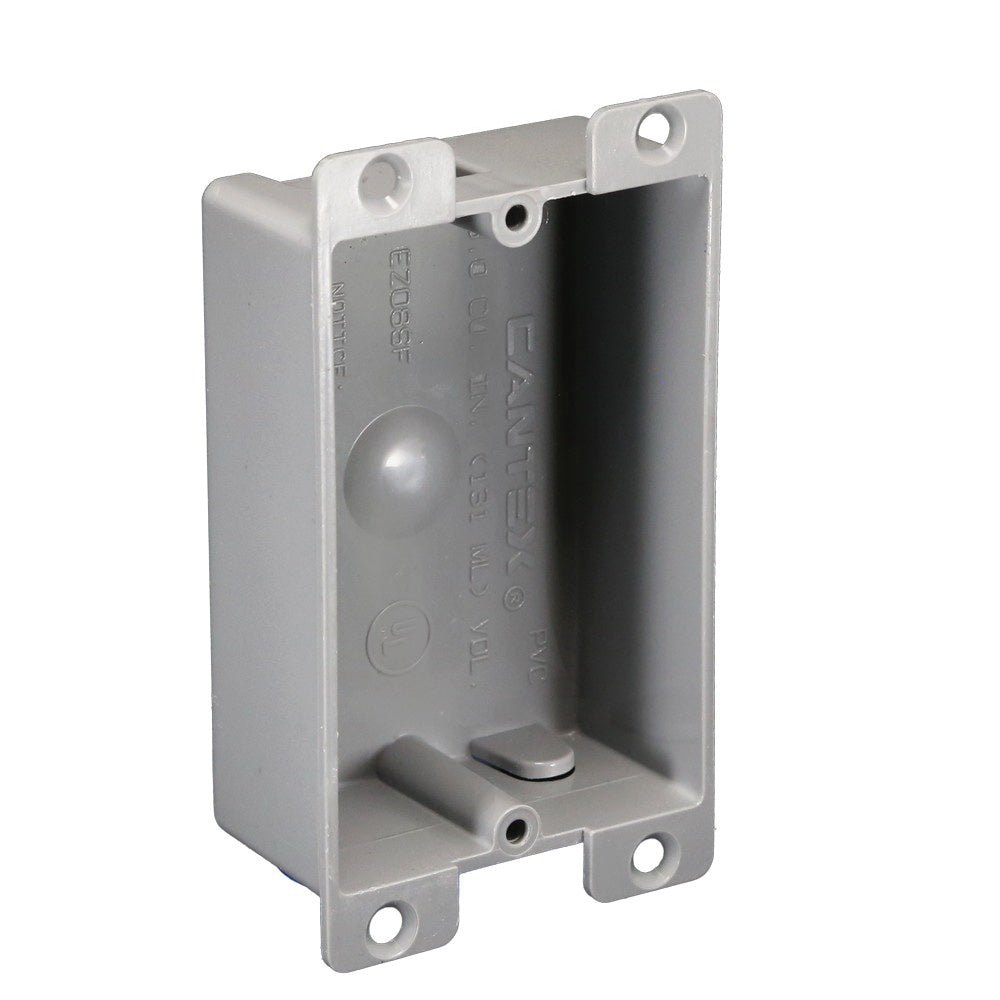

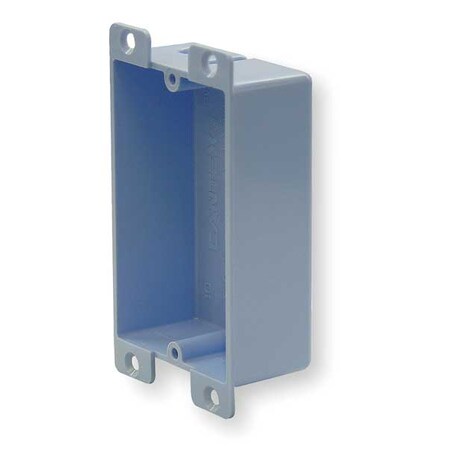

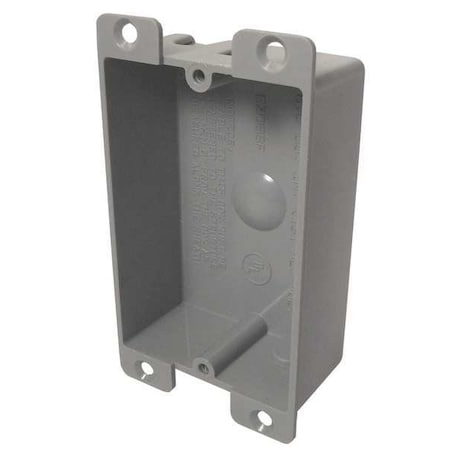

Cantex EZ08SF 1-Gang Shallow Outlet Box 8 cu-in 1-1/4 in Depth

Product Description

Cantex EZ08SF is a 1-gang, 8 cubic-inch PVC shallow outlet box designed for low-voltage switch or outlet installations. The box measures 3-1/4 in H x 2-3/8 in W x 1-1/4 in D, features molded-on flanges (mounting ears) for nail-on installation, and includes four 1/2 in back knockouts. It is intended for residential and light commercial applications, including old-work and new-work scenarios.

• Material: PVC construction with 8 cu-in capacity; nominal dimensions 3-1/4 in H x 2-3/8 in W x 1-1/4 in D
• Mounting: Molded-on flanges (mounting ears) for nail-on installation; four 1/2 in back knockouts, zero 1/2 in side knockouts
• Certifications and compliance: UL (File No. E98429), ETL listed (ETL 2-hour fire rated noted in sources), RoHS and ARRA compliant; made in USA

Product Highlights

1-gang PVC shallow box, 8 cu-in capacity, flanged nail-on mounting, four back knockouts, UL and ETL listings

Product Information

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: EZ08SF
• Country of Origin: United States

Technical Specifications

• Brand: Cantex
• Manufacturer Part Number: EZ08SF
• Product Type: 1-Gang Shallow Outlet Box / Switch Box
• Material: PVC
• Capacity: 8 cu in
• Dimensions: 3.25 in H x 2.375 in W x 1.25 in D
• Height: 3.25 in
• Width: 2.375 in
• Depth: 1.25 in
• Number of Gangs: 1
• Number of Back Knockouts: 4 (1/2 in)
• Number of Side Knockouts: 0
• Mounting Type: Molded-on flanges (mounting ears) / Nail-on
• Applications: Residential and light commercial; suitable for old-work and new-work low-voltage installations
• Certifications: UL Listed (File No. E98429); ETL Listed; ETL 2-Hour Fire Rated (noted in sources); RoHS Compliant; ARRA Compliant; Buy American Compliant
• Sub Brand: EZ Box
• Country of Origin: Made in USA
• UPC: 08870001997
• GTIN: 00088700019973
• Manufacturer: Cantex
