Cantex 5133766 1 1/4 UL40 45 BND STD R

Product Description

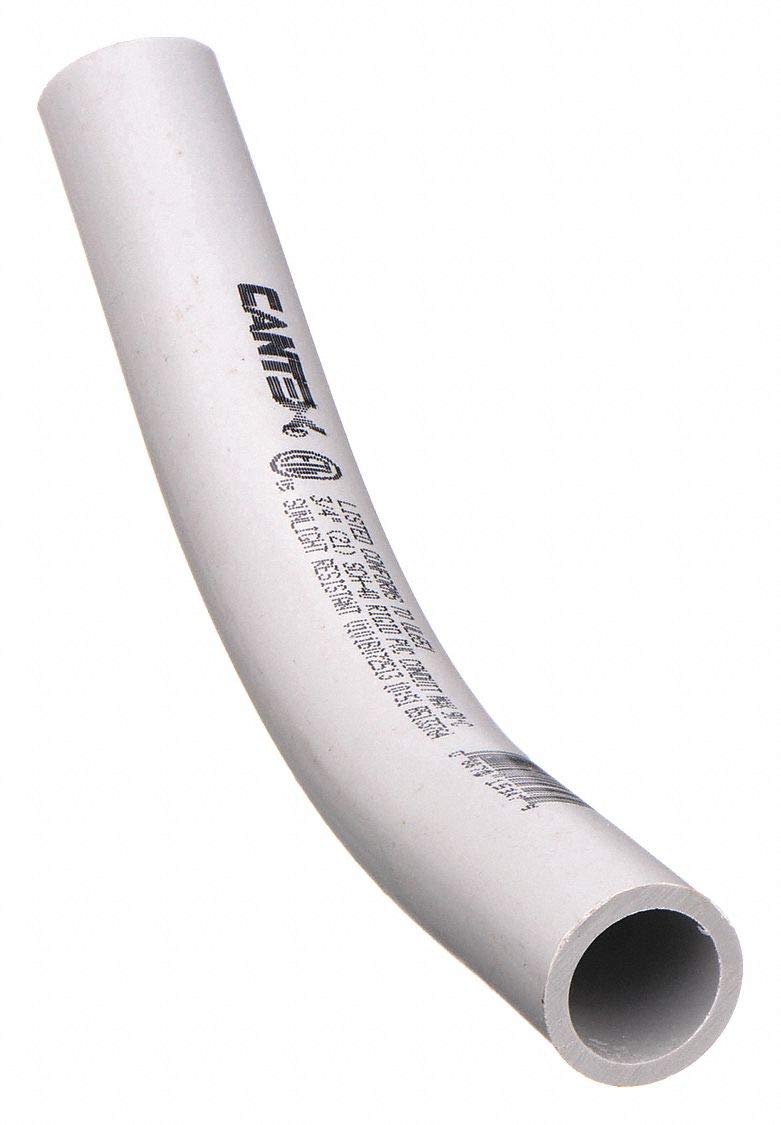

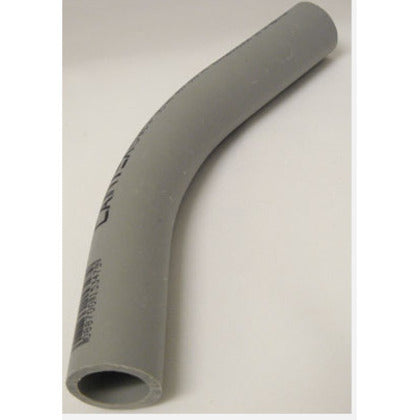

The Cantex 5133766 1 1/4 UL40 45 BND STD R is a standard radius non-metallic 45-degree rigid elbow suitable for concrete encasement. Constructed from PVC, this elbow features a plain end connection. It is UL651/ETL listed and meets NEMA TC-3 requirements. Suitable for use above ground or buried.

• Suitable for use above ground or buried and are suitable for concrete encasement
• Measures 2.125-Inch x 5.125-Inch x 2-Inch x 5.688-Inch
• Has trade size of 1-1/4-inches

Product Highlights

The Cantex 5133766 elbow is ideal for changing conduit direction. Its PVC construction ensures durability for various applications.

Product Information

Standard Information

• Brand: Cantex
• Manufacturer Part Number: 5133766
• Country of Origin: United States

Technical Specifications

• Schedule: Schedule 40
• Fitting Type: Elbow
• Standards: UL651 Listed, NEMA TC3, ETL Listed
• Type: Standard Radius
• Trade Size: 1-1/4 Inch
• Bend Radius: 7-1/4 Inch
• Brand Name: Cantex
• Connection Type: Glue
• Material: PVC
• Item Name: 45 Degree Rigid Elbow
• UPC: 08870056810
• Manufacturer Name: Cantex
• Manufacturer Part Number: 5133766
• UNSPSC: 39131700
• Conduit Fitting Type: Elbow
• For Use With: Schedule 40 PVC Conduit
• For Conduit Type: PVC
• Overall Length: 5-11/16"
• Conduit Fitting Material: PVC
• Conduit Elbow: 45 Degrees
• Elbow Angle: 45 Degrees
• Elbow Radius: 7 1/4 in
• Overall Width: 1 1/4 in
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: 45 Degrees
• Compatible Conduit Type: PVC
• Compatible Conduit Trade Size: 1 1/4 in
• Application: For change in direction of a conduit run, indoor and outdoor applications
• Radius: 7-1/4 in
