Cantex 5133666 Type-Lb Pvc Ftg 1-1/4 Inch

Product Description

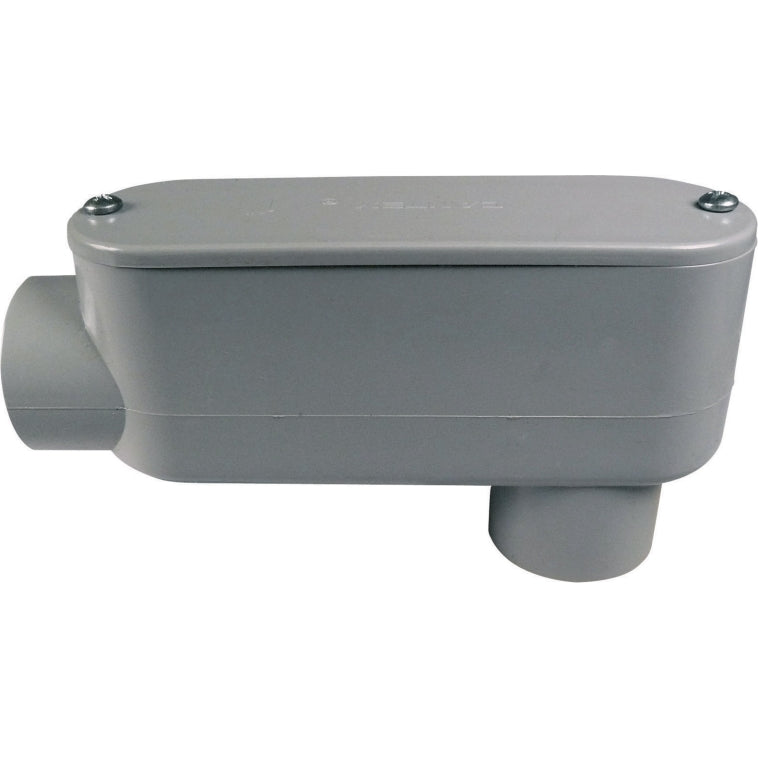

The Cantex 5133666 Type LB non-metallic rigid conduit body with a trade size of 1-1/4-inches, is designed for changes in conduit direction. Constructed from PVC with a screw-on cover, it provides back access to conductors for maintenance. The 2-Hub conduit body has a 25-Cubic-Inch capacity and accommodates 1 AWG conductors.

• Features a rectangular shaped conduit body with a removable cover
• Trade size of 1-1/4-inches
• Measures 7.563-Inch x 2.5-Inch

Product Highlights

This rigid conduit body is UL listed and CSA certified. Ideal for use with Schedule 40 and 80 conduits.

Product Information

Standard Information

• Brand: Cantex
• Manufacturer Part Number: 5133666
• Country of Origin: United States

Technical Specifications

• MPN: 5133666
• Brand: CANTEX
• Trade Size: 1-1/4 Inch
• Type: Non-Metallic
• Standards: UL Listed, CSA Certified
• Conduit Body Style: Type LB
• Number of Hubs: 2.0000
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: 1 AWG XHHW
• Cubic Capacity: 25
• Material: PVC
• Hub Placement: 90 Degree
• Item Name: Rigid Conduit Body
• For Use With: Schedule 40 Conduit, Schedule 80 Conduit
• Overall Width: 2 1/2 in
• Overall Length: 7 9/16 in
• Gasket Included: Yes
• Special Features: Non-Conductive, Non-Corrosive, Non-Rusting
• Hazardous Location: No
• Connection Orientation: 90 Degrees
• Conduit Outlet Hub Size: 1-1/4"
• Conduit Outlet Body Type: Conduit Outlet Body
• Hazardous Location Rating: Not Rated
• Conduit Outlet Body Capacity: 25.0 cu in
• Conduit Outlet Body Hub Style: Not Threaded
• Compatible Conduit Trade Size: 1 1/4 in
• Country of Origin: United States
• Application: For used with schedule 40 and 80 conduit
• Includes: Lid, Gasket, Screws
• Standards/Approvals: ARRA Compliant|RoHS Compliant|CSA Certified|UL File No. E98429
• Outside Diameter: 1-1/4 in
• Length: 7.56 in
• Suitable for: SCH 40 and 80 Conduit
• UPC: 088700065444
