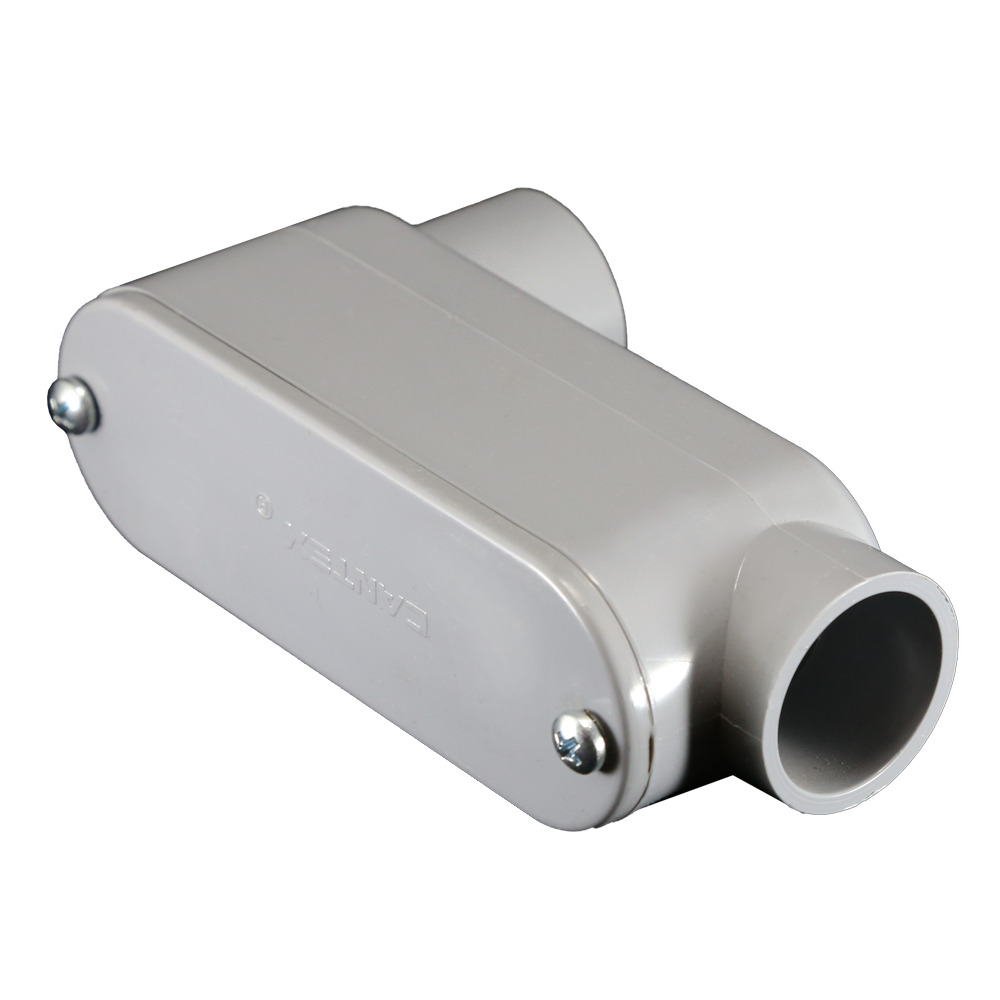

Cantex 5133665 Condulet pvc conduit type LB 1in

Product Description

The Cantex 5133665 is a Conduit Body designed for use in electrical conduit applications. It is a Type LB conduit body made from durable PVC and has a one-inch hub. This product allows for pull, splice, and tap access for conductors within a conduit system, while also facilitating a change in direction.

• Durable non-conductive PVC material
• Designed for schedule 40 and 80 conduit
• Includes lid, gasket, and screws

Product Highlights

This Cantex product is suitable for installations requiring a robust conduit body to direct conductors effectively.

Product Information

Standard Information

• Material: PVC
• Color: Gray

Technical Specifications

• Application: For use with schedule 40 and 80 conduit
• Hub Size: 1 inch
• Dimensions: 5.375 inches L x 1.313 inches W x 1.75 inches H
• Type: Type LB Rounded Corner
• Includes: Lid, Gasket, Screws
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA Certified, UL File No. E98429
• Manufacturer Part Number: 5133665
