Cantex 5133664 PVC LB 3/4 IN CTX

Product Description

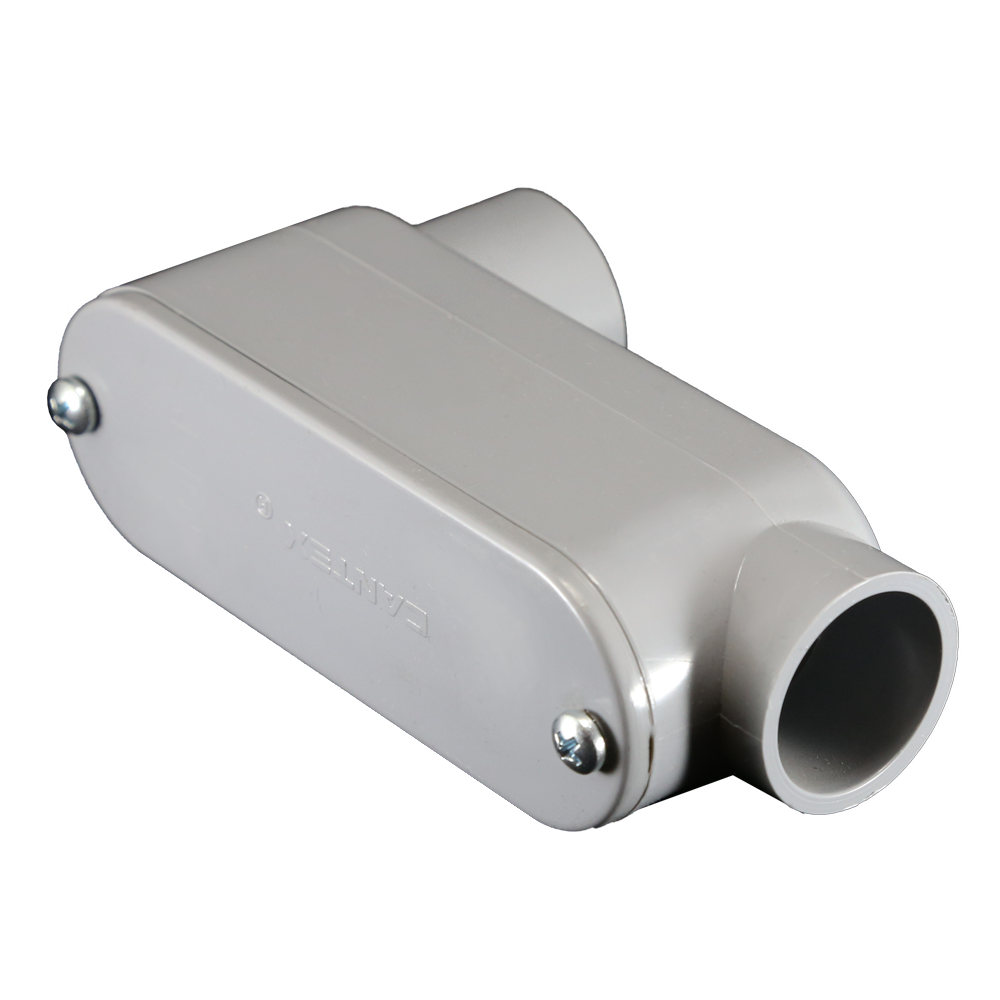

The Cantex conduit body, model number 5133664, is designed for use with PVC systems. This Type LB rounded corner model has a hub size of three-fourths inch and provides a total capacity of six point five cubic inches. It is crafted from durable PVC material, ensuring it is non-conductive and resistant to rust and corrosion. This product is perfect for applications requiring a change in direction in the conduit run.

• Type LB design allows for splice, pull, and tap access.
• Used to create a 90-degree turn in conduit systems.
• Includes lid, gasket, and screws for installation.

Product Highlights

This conduit body is specifically engineered for use with SCH40 and SCH80 conduits, providing reliable connections and accessibility for maintenance.

Product Information

Standard Information

• Brand: Cantex
• Manufacturer Part Number: 5133664

Technical Specifications

• Capacity: 6.5 cu-in
• Hub Size: 3/4 in
• Material: PVC
• Dimensions: 4.625 in L x 1.063 in W x 1.5 in H
• Color: Gray
• Standards: ARRA Compliant, RoHS Compliant, CSA Certified, UL File No. E98429
• Application: For use with SCH40 and SCH80 conduit
• Type: Type LB Rounded Corner
