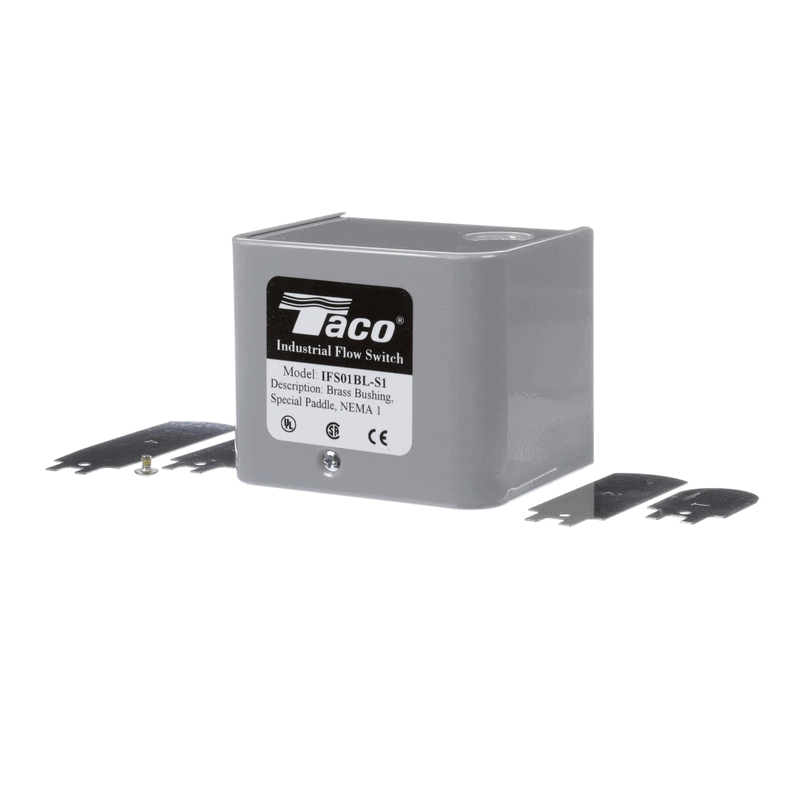

Campbell L100208653 Flow Switch Nema 1 Brass Bushing

Product Description

The CAMPBELL L100208653 is a NEMA 1 flow switch with paddle and brass bushing, designed for use in hydronic heating and boiler systems. The flow switch monitors liquid movement through a pipe and signals the system to start or stop based on detected flow. When flow is present, the paddle actuates the internal switch mechanism, allowing the connected equipment to energize. When flow stops, the switch opens to shut down the system. This type of control is a critical safety and operational component in hot water boiler and heating system installations, typically serviced by licensed plumbers and HVAC technicians.

This flow switch is suited for residential and light commercial hydronic applications where reliable flow detection is required. It installs in a pipe fitting using the brass bushing and relies on the included paddle to sense water movement. The NEMA 1 enclosure rating makes it appropriate for indoor, dry-location installations. It is commonly installed on the supply or return piping of boiler systems to protect equipment from dry-fire conditions or low-flow faults.

Key Features

• NEMA 1 enclosure rating for indoor dry-location use
• Brass bushing for durable, corrosion-resistant pipe connection
• Paddle-type actuator included for flow detection
• OEM replacement part for Lochinvar boiler system applications
• Compact form factor at 8.5 inches long by 6 inches wide by 4 inches tall

Compatibility

Designed as an OEM-style replacement flow switch for Lochinvar boiler and hydronic heating systems. Reference Lochinvar part number 100208653 when verifying fitment for your specific unit.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician familiar with hydronic systems. Shut off the boiler and relieve system pressure before removing or installing any flow switch. Ensure the paddle size is appropriate for the pipe diameter prior to installation. Follow all applicable local plumbing and mechanical codes during installation and wiring of the switch.

Technical Specifications

• Enclosure Rating: NEMA 1
• Bushing Material: Brass
• Includes: Paddle
• Length: 8.5 inches
• Width: 6 inches
• Height: 4 inches
• Weight: 3 pounds

Standard Information

• Brand: CAMPBELL
• Manufacturer Part Number: L100208653
