Campbell 7206936 Double Sheave Shell Block 1400 Lb

Product Description

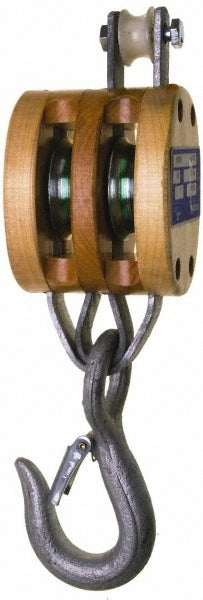

The CAMPBELL 7206936 is a double sheave shell block rated for a 1,400-pound load limit. It features a 2.25-inch outside diameter sheave designed for use with 0.5-inch diameter fibrous rope. The block body is constructed of wood with a galvanized finish that resists corrosion in outdoor and marine rigging environments. This type of block is used in rope-and-tackle systems to redirect load lines and gain mechanical advantage when lifting or pulling. It is installed by riggers, contractors, and trade professionals working in material handling, staging, and hoisting applications.

This shell block is suited for residential and light commercial rigging setups where fibrous rope tackle systems are standard. Typical applications include block-and-tackle hoisting rigs, tree work, staging, and similar rope-based load-handling tasks. The double sheave configuration allows two rope runs through a single block, enabling greater mechanical advantage in a compact assembly. The galvanized finish makes it appropriate for use in exposed or damp environments.

Key Features

• 1,400-pound load limit for medium-duty rigging and hoisting tasks
• Double sheave design provides increased mechanical advantage in block-and-tackle systems
• 2.25-inch outside diameter sheave sized for 0.5-inch fibrous rope
• Wood block body with galvanized finish for corrosion resistance in outdoor environments
• Compact shell block form factor for use in standard rope tackle rigging

Compatibility

Designed for use with 0.5-inch diameter fibrous rope in standard block-and-tackle rigging assemblies.

Installation Notes

Shell blocks of this type are installed by qualified riggers or contractors familiar with rope tackle systems and applicable load ratings. Always verify that the combined working load of the entire rigging system does not exceed the rated capacity of the weakest component. Inspect the block, sheave, and rope for wear or damage before each use. Follow applicable OSHA and ASME rigging safety guidelines when assembling and operating block-and-tackle systems.
