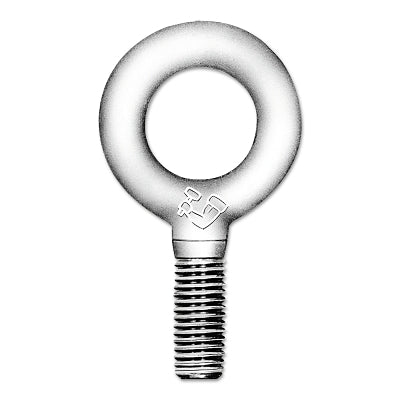

CAMPBELL 7100124 Plain Pattern Eye Bolts 1/2 in - 13 UNC

Product Description

The Campbell 7100124 Plain Pattern Eye Bolts measure one-half inch by thirteen Unified National Coarse threads. Made from forged carbon steel, these eye bolts are designed for robust applications in material handling.

• Drop forged for extra strength
• Includes Unified National Coarse threads
• Capable of supporting heavy loads at various angles

Product Highlights

These eye bolts are essential for securing loads and are suitable for various industrial purposes. They feature quenched and tempered steel for durability and reliability.

Product Information

Standard Information

• Brand: Campbell
• Manufacturer: Apex Tool Group

Technical Specifications

• Eye Inner Diameter: 1 3/16 in
• Eye Outer Size: 2 1/8 in
• Maximum Load @ Angle: 2600 lb @ 0 °; 850 lb @ 30 °; 525 lb @ 45 °; 475 lb @ 60 °; 400 lb @ 90 °
• Nominal Load Capacity: 2400 lb
• Material: Forged Carbon Steel
• Overall Length: 1 1/2 in
• Thread: 1/2 in - 13 UNC
• Weight: 0.31 lb
