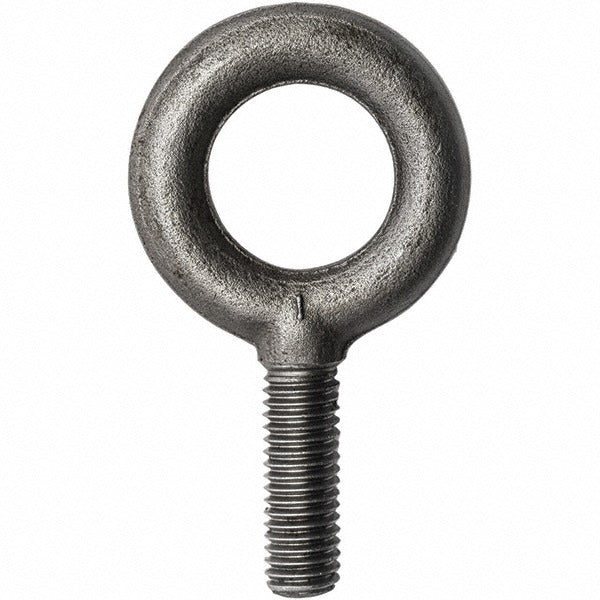

Campbell 7100121 Fixed Eye Bolt 500 Lb 1/4-20 Thread

Product Description

The CAMPBELL 7100121 is a fixed lifting eye bolt designed for overhead lifting and rigging applications where a secure, permanent anchor point is required. Rated at 500 lb lifting capacity, this shoulderless eye bolt features a 1/4-20 fully threaded shank measuring 1 inch in length. Constructed from Grade C-1030 forged steel, it delivers the structural integrity demanded in industrial, construction, and maintenance rigging setups. The forged construction ensures consistent grain structure and load-bearing reliability. Installation is straightforward for riggers and maintenance professionals who require a dependable fixed-point lifting anchor.

This eye bolt is suited for light-duty overhead lifting, rigging, and tie-down applications in industrial, commercial, and maintenance environments. The without-shoulder design means it is intended for straight vertical lifting loads only — angular loading should be avoided with this configuration. It is commonly installed into machinery frames, structural steel, wood beams, or equipment housings where a threaded anchor point is needed for hoists, come-alongs, or rigging hardware.

Key Features

• 500 lb rated lifting capacity for light-duty overhead rigging
• 1/4-20 fully threaded shank, 1 inch thread length
• Without-shoulder design — intended for vertical straight-line loads only
• Grade C-1030 forged steel construction for consistent structural integrity
• Eye inside diameter of 3/4 inch accommodates standard rigging hardware
• Eye outside diameter of 1-13/16 inches

Compatibility

Designed as a standard fixed eye bolt for use with any application requiring a 1/4-20 threaded anchor point rated to 500 lb vertical lift capacity.

Installation Notes

Installation is performed by qualified riggers or maintenance mechanics. Thread the eye bolt fully into the receiving material to ensure complete thread engagement before applying any load. Without-shoulder eye bolts must be loaded vertically — do not apply angular or side loads, as this can significantly reduce rated capacity and risk hardware failure. Follow applicable ASME B30.26 rigging hardware standards and verify that the receiving substrate is rated to handle the applied load.

Technical Specifications

• Eye Bolt Type: Fixed
• Shoulder Type: Without Shoulder
• Lifting Capacity: 500 lb
• Thread Size: 1/4-20
• Thread Length: 1 inch
• Full or Partial Threading: Fully Threaded
• Eye Inside Diameter: 3/4 inch
• Eye Outside Diameter: 1-13/16 inches
• Material: Grade C-1030 Forged Steel

Standard Information

• Brand: CAMPBELL
• Manufacturer Part Number: 7100121
