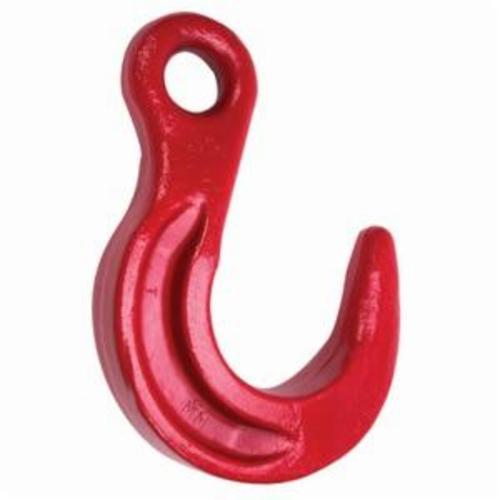

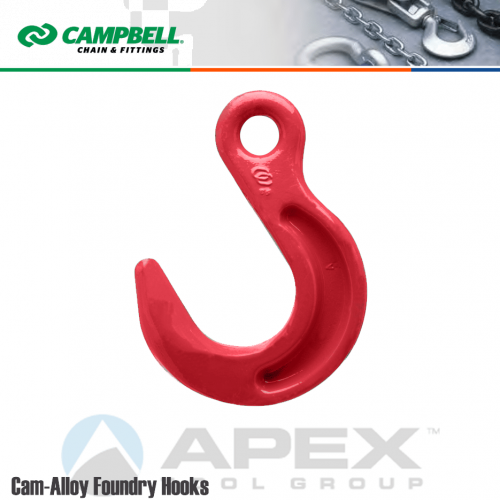

CAMPBELL 5661615 Foundry Hook

Product Description

The CAMPBELL 5661615 Foundry Hook is designed for use with Grade 80 and Grade 100 chain slings. This hook is made from alloy steel for strength and durability, making it suitable for overhead lifting tasks. The product features an eyelet for easy attachment and has a protective painted finish. It is proof tested to meet ASTM A952 standards and is marked with 'USA' and a date code.

• Compatible with Grade 80 and Grade 100 chain slings.
• Made from durable alloy steel.
• Eyelet attachment for secure connection.

Product Highlights

Efficient and safe lifting with this heavy-duty foundry hook designed for reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer Part Number: 5661615
• Material: Alloy Steel

Technical Specifications

• Grade: 80
• Working Load Limit: 47700 lb
• Chain Size: 1 inch
• Attachment Type: Eyelet
• Finish: Painted
• Hook Opening: 5.50 inches
• D Dimension: 3.25 inches
• H Dimension: 3.75 inches
• R Dimension: 11.56 inches
• T Dimension: 5.50 inches
• W Dimension: 2.50 inches
• Weight: 34.10 lb
