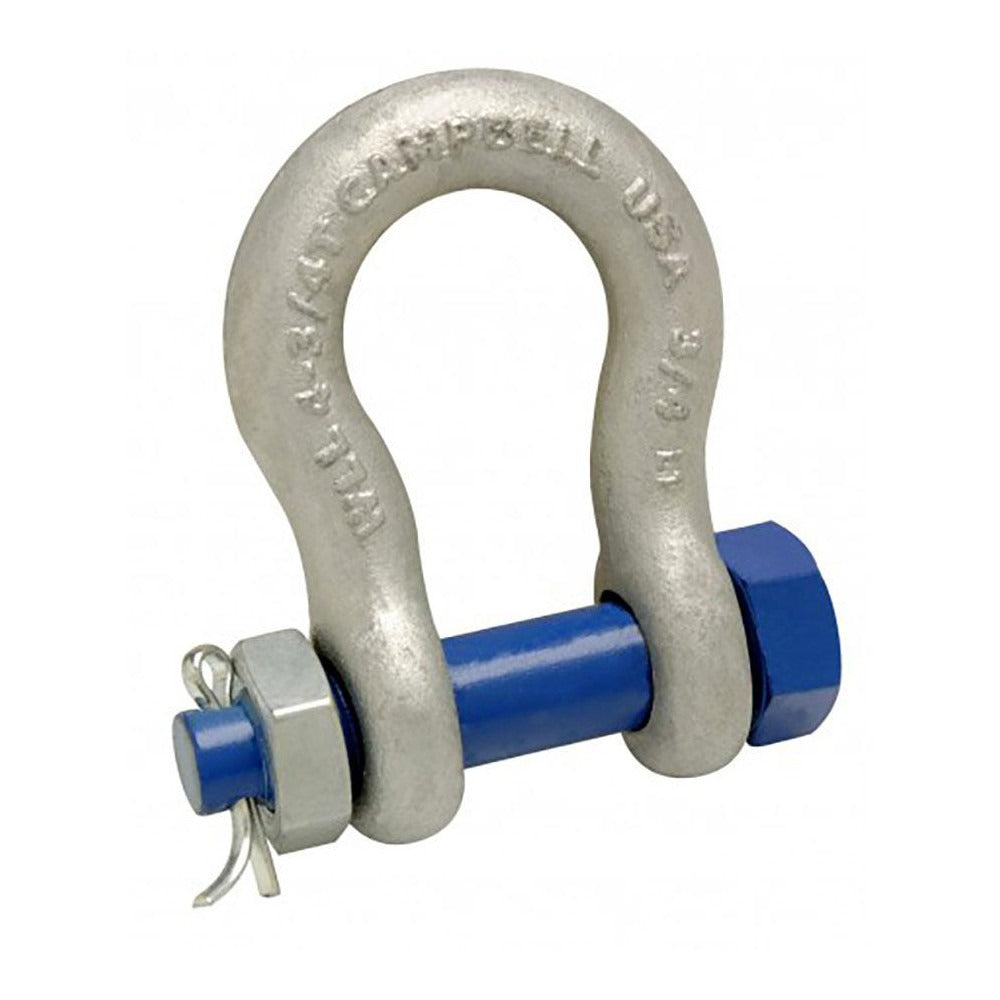

Campbell 5392235 Anchor Shackle Bolt Pin Galvanized

Product Description

The CAMPBELL 5392235 is a bolt-pin anchor shackle designed for lifting, rigging, and load-securing applications in industrial and construction environments. Forged from carbon steel with a hot-dip galvanized finish per ASTM A-153, this shackle delivers corrosion resistance and structural integrity under working load conditions. The bow-style anchor body accepts multi-leg slings and below-the-hook hardware, while the threaded bolt pin with a retaining nut prevents accidental rotation during use. Riggers, ironworkers, and field crews install this shackle as a standard connection point in overhead lifting and tie-down rigging assemblies.

This anchor shackle suits general-purpose rigging on job sites where corrosion exposure is a concern, including marine, outdoor construction, and industrial yard environments. The galvanized finish provides extended service life in wet or high-humidity conditions. It accommodates hardware up to 3.25 inches in material thickness, making it compatible with heavy-gauge chain, wire rope, and synthetic sling end fittings commonly used in commercial and industrial rigging setups.

Key Features

• Forged carbon steel construction for consistent grain structure and load-bearing strength
• Hot-dip galvanized finish meets ASTM A-153 for corrosion resistance in outdoor and marine environments
• Bolt-pin design with threaded nut prevents pin rotation under dynamic or side-loaded conditions
• Anchor (bow) shackle body accepts multi-directional loading from slings and hooks
• Maximum material thickness capacity of 3.25 inches accommodates heavy rigging hardware

Compatibility

Designed as a standard bolt-pin anchor shackle for use with wire rope, chain, and synthetic sling assemblies in general-purpose overhead lifting and tie-down rigging applications.

Installation Notes

Rigging hardware installation should be performed by a qualified rigger familiar with applicable ASME B30 rigging standards. Before use, verify the working load limit marked on the shackle body is not exceeded by the intended load. Ensure the bolt pin is fully threaded and the retaining nut is secured before any lift. Never side-load the pin or use a shackle that shows visible deformation, cracks, or corrosion pitting.
