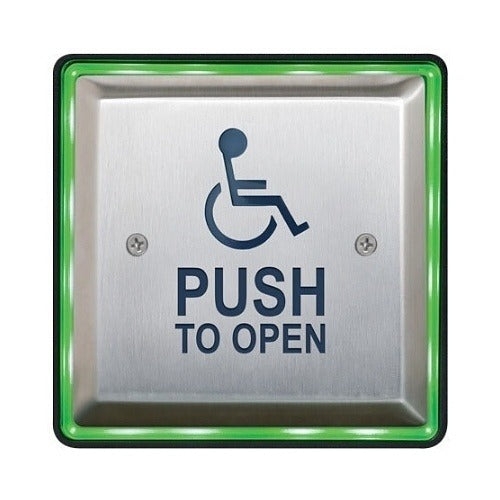

Camden Door Controls CM-46/454 Illuminated Push Button

Product Description

The Camden Door Controls CM-46/454 is a square illuminated push button designed for access control and door activation applications. This surface-mount unit features dual-color illumination in red and green, allowing visual status indication at the point of use. It is typically installed at entrances, exits, and controlled-access doorways in commercial and institutional buildings. Electrical contractors and access control technicians handle installation as part of a low-voltage door control system.

The CM-46/454 is suited for surface-mount installation on walls or door frames adjacent to electric strikes, magnetic locks, or automatic door operators. Its square form factor and illuminated face make it appropriate for high-visibility locations where users need clear confirmation of door release status. Common installations include office buildings, healthcare facilities, retail entrances, and other commercial environments requiring controlled pedestrian access.

Key Features

• Dual-color illumination: red and green for visual status indication
• Square push button form factor for consistent, professional appearance
• Surface-mount design for straightforward wall or frame installation
• Compatible with standard low-voltage access control wiring
• Sold as individual unit for single-point replacement or new installation

Compatibility

Designed as an OEM-style surface-mount push button for use with low-voltage access control systems including electric strikes, electromagnetic locks, and automatic door operators in commercial door control applications.

Installation Notes

Installation is performed by a licensed electrician or certified access control technician in accordance with applicable NEC low-voltage wiring requirements. Disconnect and de-energize the door control circuit before wiring or mounting the device. Confirm compatibility with the connected door controller or access panel before completing the circuit. Do not exceed the rated electrical parameters of the device when integrating into an existing system.
