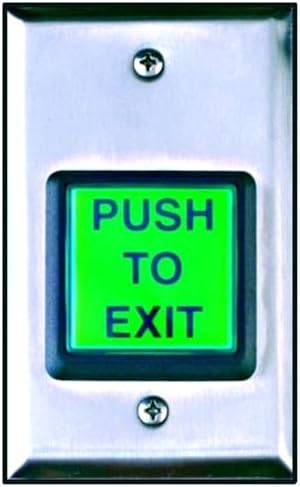

Camden Door Controls CM-30E CM-30 Series Square LED Illuminated Push Button "Push to Exit" Economy Switch

Product Description

The CAMDEN DOOR CONTROLS CM-30E is a UL compliant LED illuminated request to exit (REX) switch conforming to NFPA code requirements and is ADA compliant. Designed to control electric locks, electromagnetic locks, electric strikes, and low energy door operators. It may also be used for shunting, bypassing alarms, request to exit and timed functions.

• High visibility 2" square button
• Single gang stainless steel faceplate
• LED bulb provides super-bright operation and longevity (10 year estimate)

Product Highlights

The CM-30E switch is an economical single label 'Push to Exit' version with a voltage of 12/24 VDC and a contact rating of 10 A @ 30 VDC.

Product Information

Standard Information

• Brand: CAMDEN DOOR CONTROLS
• Manufacturer Part Number: CM-30E
• Country of Origin: Canada

Technical Specifications

• Depth: 2"
• Width: 2.8"
• Height: 4.5"
• Material: Stainless steel
• Gang Type: Single Gang
• Brand Name: Camden Door Controls
• Button Size: 2"
• Manufacturer: Camden Door Controls
• Product Line: Express
• Product Name: Express CM-30E Push Button
• Product Type: Push Button
• Input Voltage: 12V DC,28V DC
• Print/Message: Push To Exit
• Product Model: CM-30E
• Product Series: CM-30
• ADI Part Number: CM-30E
• Application/Usage: Alarm,Door
• Additional Information: Green Lens\nPush to Exit
• Manufacturer Part Number: CM-30-E
• Voltage: 12/24 VDC
• Contact Type: SPDT Form 'C'
• Contact Rating: 10 A @ 30 VDC
• Switch Type: Momentary
• Current Draw: LED Bulb: 14 mA
• Std. Finish: US32/C32D
• Compliance: UL and NFPA code compliant, ADA compliant
• Faceplate Material: Stainless Steel
• Label: Single label 'Push to Exit'
• LED Features: Super-bright operation and longevity
