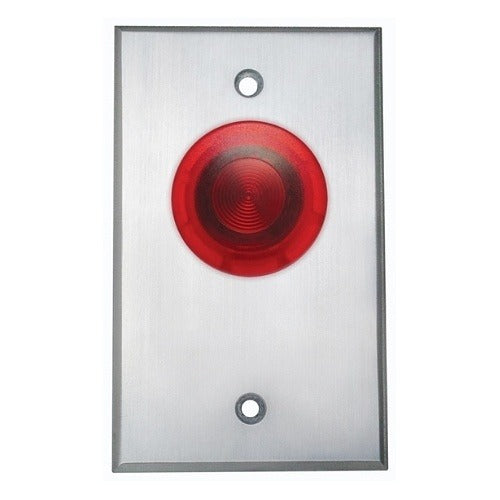

Camden Door Controls CM-3050R Push Pull Button Station

Product Description

The Camden Door Controls CM-3050R is an illuminated red push/pull button station designed for access control applications. It provides both normally open (N/O) and normally closed (N/C) contact outputs in a single unit, making it compatible with a wide range of access control panels and electric locking hardware. The illuminated red button gives clear visual indication of the station's status, which is essential in high-traffic or low-light environments. Licensed access control technicians and security installers typically specify this type of station for door release and entry control points in commercial and institutional facilities.

This station is suited for use in commercial access control systems where a dedicated pull station is required for door release or egress functions. It fits typical surface-mount installation scenarios at entry doors, stairwells, and secured corridors. The dual N/O and N/C output configuration allows integration with most standard access control panels without additional relay hardware. It is sold as an individual unit and is appropriate for both new installations and retrofit projects requiring a replacement push/pull access station.

Key Features

• Illuminated red button provides clear visual identification at the station
• Dual N/O and N/C contacts support flexible integration with access control panels
• Push/pull actuator design suits both door release and entry request functions
• Single-unit configuration simplifies rough-in and wiring at the door

Compatibility

Designed as an OEM-style access pull station for use with standard commercial access control systems that accept dry-contact N/O or N/C inputs.

Installation Notes

Installation is typically performed by a licensed low-voltage or access control technician. Power down the access control panel before making wiring connections at the station. Follow local low-voltage wiring codes and the panel manufacturer's wiring diagram when connecting N/O and N/C terminals. Confirm contact configuration at the panel before restoring power and testing door release operation.
