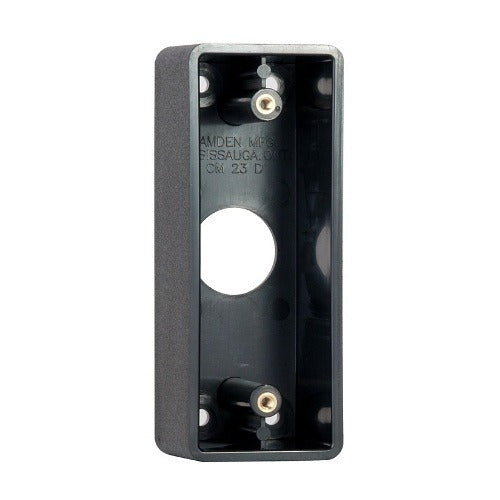

Camden Door Controls CM-23D Deep Jamb Box

Product Description

The Camden Door Controls CM-23D is a deep jamb box designed to house the CM-324N push button assembly in door frame installations. It provides a recessed mounting solution that keeps the push button hardware flush with or set back into the door jamb, resulting in a cleaner installation profile and added protection for the button mechanism. This enclosure is used in access control and automatic door opener applications and is typically installed by electricians or low-voltage technicians working on commercial entry systems.

The CM-23D is suited for commercial and light industrial door control installations where a standard-depth jamb box does not provide sufficient clearance for the CM-324N push button. It is commonly installed in hollow metal frames or deep-profile door jambs where extra depth is required to properly seat the button housing and associated wiring.

Key Features

• Designed specifically to house the CM-324N push button in deep jamb frame applications
• Recessed mounting profile keeps hardware protected within the door frame
• Accommodates door jambs requiring extra enclosure depth beyond standard boxes
• Sold as a single unit for straightforward replacement or new installation

Compatibility

Designed for use with the Camden Door Controls CM-324N push button. Verify jamb depth and frame dimensions before installation to confirm fitment.

Installation Notes

Installation is typically performed by a licensed electrician or low-voltage access control technician. Power to the door control system should be disconnected before mounting the enclosure or making any wiring connections. Verify local building codes and ADA requirements for push button placement height and clearance. Ensure the rough-in opening in the door jamb is sized correctly to accept the box before securing it in place.
