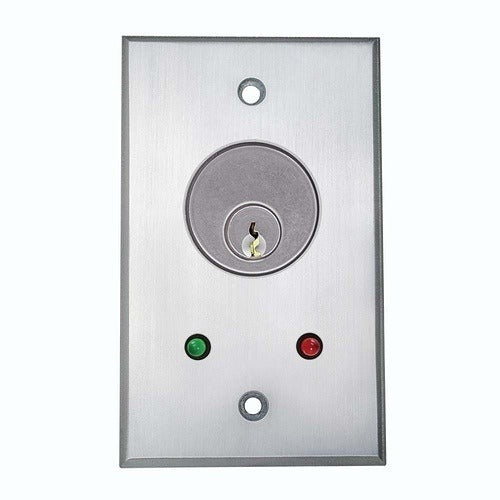

Camden Door Controls CM-1182-7224-60KA Key Switch Dpdt Momentary

Product Description

The Camden Door Controls CM-1182-7224-60KA is a key switch designed for access control and door control applications. It features two double pole double throw (DPDT) momentary contacts, allowing the operator to use a key to trigger brief, spring-return switching actions across two independent circuits simultaneously. This type of key switch is commonly installed by electricians and low-voltage access control technicians in commercial and industrial facilities where controlled, secure actuation of door hardware or entry systems is required. The MRTF cylinder provides the keyed security interface for the switch mechanism.

This key switch is suited for commercial door control installations where momentary key activation is needed to trigger electric strikes, magnetic locks, door releases, or related access control equipment. The DPDT contact configuration provides flexibility for wiring into systems that require simultaneous switching of multiple circuits from a single key action. Typical installations include vestibules, secured corridors, lobbies, and controlled access points in commercial buildings.

Key Features

• Two DPDT momentary contacts for simultaneous dual-circuit switching
• Momentary action returns contacts to default state when key is released
• MRTF cylinder keying for secure, key-controlled operation
• Sold as a single unit for straightforward procurement and replacement
• Designed for access control, door release, and entry system applications

Compatibility

Designed as an OEM-style replacement or direct-install key switch for commercial access control and door control systems requiring DPDT momentary key switch functionality.

Installation Notes

Installation should be performed by a licensed electrician or qualified low-voltage access control technician in accordance with applicable NEC requirements and local codes. Disconnect and de-energize the access control system and any connected door hardware before wiring or mounting the switch. Ensure the mounting surface and electrical box are compatible with the switch housing dimensions before installation. Do not apply voltage exceeding the rated limits of the switch contacts.
