Camden CX-MA0613D Lz Bracket 600 Lb Magnetic Lock

Product Description

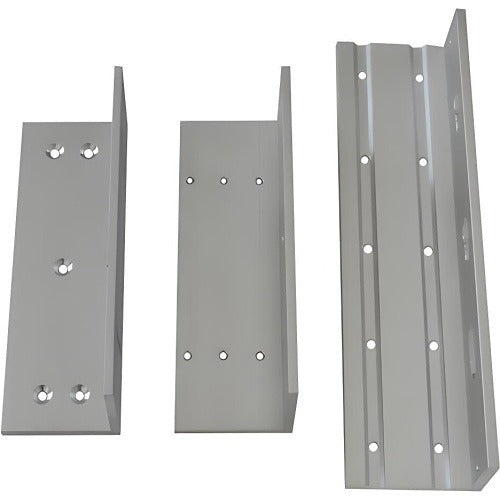

The Camden Door Controls CX-MA0613D is an LZ-style mounting bracket designed for use with 600-pound-rated electromagnetic door locks. The bracket provides the mechanical interface between the door frame or header and the magnet body, allowing proper alignment and holding-force transfer across the door gap. It is sold individually and is a core hardware component in access control door assemblies. Installers working on commercial or institutional door openings use this bracket to position the magnet correctly relative to the armature plate on the door leaf.

This bracket is suited for access control installations where a 600-pound magnetic lock is specified, including hollow metal door frames, aluminum storefront openings, and interior corridor doors in commercial buildings. It is typically installed by licensed access control technicians or low-voltage electricians as part of a complete electromagnetic locking system. The LZ configuration addresses specific door and frame geometry requirements where a standard Z or L bracket alone would not achieve proper alignment.

Key Features

• Rated for use with 600-pound electromagnetic door locks
• LZ-style geometry accommodates specific door frame and header configurations
• Sold as an individual unit for single-door applications
• Designed as a dedicated mounting bracket for precise magnet-to-armature alignment

Compatibility

Designed as an OEM-style mounting bracket for 600-pound electromagnetic door locks in commercial access control assemblies. Verify door frame geometry and lock model requirements before ordering to confirm LZ bracket fitment.

Installation Notes

Installation should be performed by a licensed access control technician or low-voltage electrician in accordance with local building codes and NFPA 101 life safety requirements for electrically controlled egress hardware. Disconnect power to the electromagnetic lock and the access control panel before handling any hardware or wiring. Verify door frame squareness and gap consistency before mounting to ensure full surface contact between the magnet face and armature plate. Do not modify the bracket by cutting or drilling outside of designated mounting holes, as this may compromise holding force ratings.
