Camco 34085 Water Heater Drain Pan 30 Inches Aluminum

Product Description

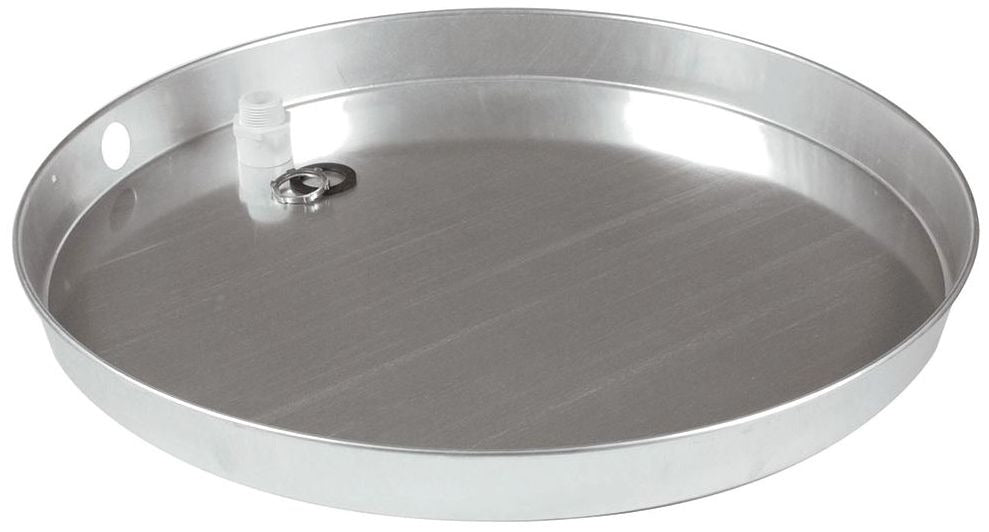

The CAMCO 34085 is an aluminum drain pan designed to catch water heater leaks and condensation before they cause floor or structural damage. Measuring 30 inches in inside diameter and 2.5 inches in height, this pan fits beneath standard tank-style water heaters in residential and light commercial settings. It is compatible with both gas and electric water heater installations. The pan ships with PVC drain fittings sized at 1 inch and 1.5 inches, allowing the installer to route collected water to a floor drain or standpipe. Plumbers and service techs install this pan as part of a compliant water heater installation.

This drain pan is used beneath tank-style water heaters installed on finished floors, in utility rooms, closets, and garages where floor protection is required. Many local plumbing codes and the International Plumbing Code (IPC) require a drain pan when a water heater is located in a space where a leak could cause damage to the structure or occupants below. The 30-inch interior diameter accommodates a wide range of residential water heater tank diameters. Included PVC drain fittings support both 1-inch and 1.5-inch drain line connections.

Key Features

• 30-inch inside diameter fits a wide range of residential tank water heaters
• 2.5-inch pan height provides meaningful water containment capacity
• Aluminum construction resists corrosion in damp utility environments
• Includes dual-size PVC drain fittings: 1 inch and 1.5 inch
• Compatible with both gas and electric tank-style water heaters

Compatibility

Designed as an OEM-style replacement and new-installation drain pan for residential gas and electric tank-style water heaters with an outside tank diameter that fits within a 30-inch interior pan opening. Includes PVC drain fittings referenced as 11452 (1.5 inch) and 11442 (1 inch).

Installation Notes

This pan is typically installed by a licensed plumber during water heater replacement or new installation. Shut off the water supply and gas or electrical power to the water heater before any service work begins. Route the drain fitting to an approved drain receptor per local IPC requirements. Do not install the pan in a manner that impedes proper combustion air flow around gas-fired appliances.

Technical Specifications

• Material: Aluminum
• Inside Diameter: 30 inches
• Height: 2.5 inches
• Included Drain Fittings: 1 inch and 1.5 inch PVC
• Compatible Heater Types: Gas and Electric

Standard Information

• Brand: CAMCO
• Manufacturer Part Number: 34085
