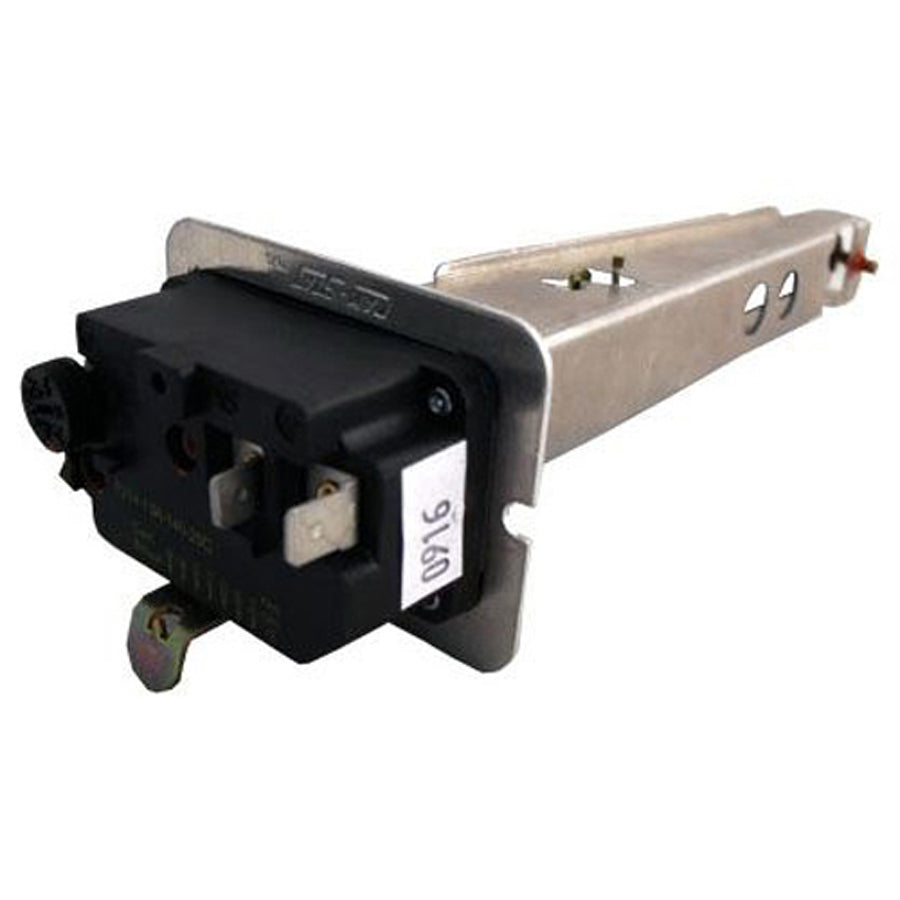

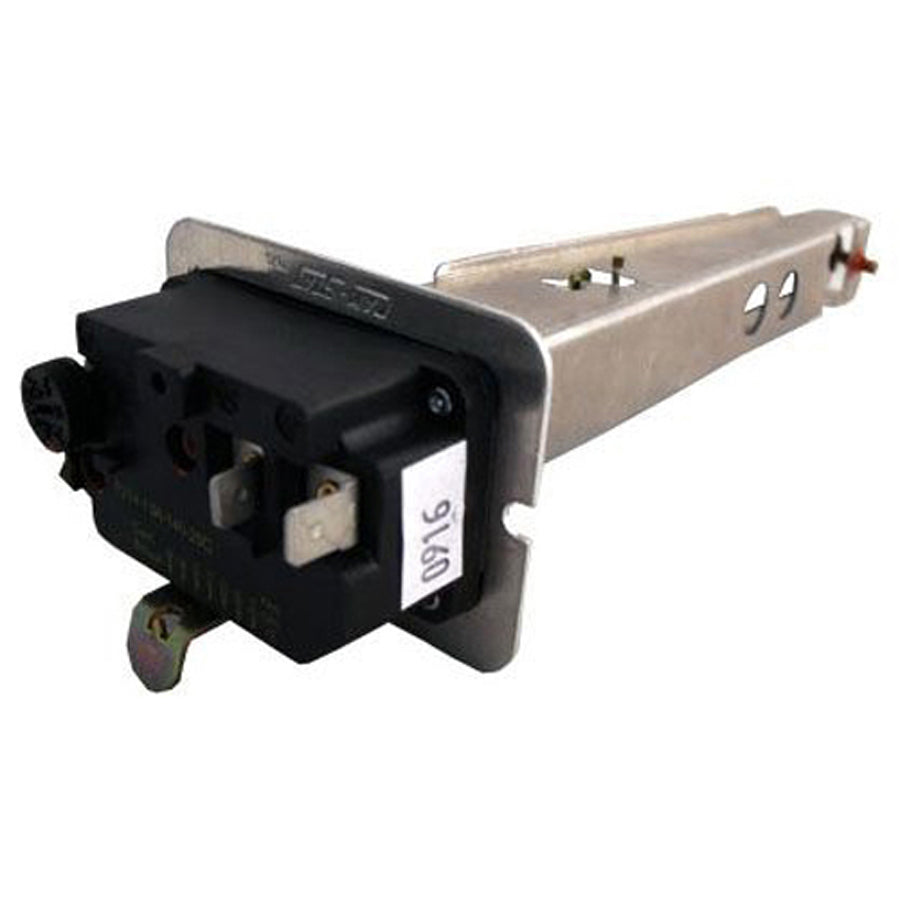

Cam-stat FF562 Fan Control Adjustable Spst 60-140F

Product Description

The CAM-STAT FF562 is an adjustable SPST fan control designed for residential forced-air heating systems. It measures 3 inches by 1-1/16 inches and operates across a temperature range of 60 to 140 degrees F. The FF562 controls the blower motor by sensing plenum or heat exchanger temperature, starting and stopping the fan at appropriate thresholds to maximize comfort and system efficiency. It carries UL and CSA approvals and is rated for 13.8 amps at 120 volts AC or 8 amps at 240 volts AC under full load conditions. HVAC technicians install this control as a direct replacement in gas or oil furnace applications where the original fan control has failed or needs recalibration.

The FF562 is suited for residential gas and oil furnaces where a single-stage, temperature-actuated fan control is required. Its built-in temperature adjustment feature allows the technician to match the setpoint to the existing system's original calibration without guesswork. This makes it a practical choice during a service call where the goal is to restore original system performance quickly. It fits standard fan control mounting configurations found in many forced-air furnace platforms.

Key Features

• Adjustable temperature setpoint covers 60 to 140 degrees F to match original equipment settings
• SPST contact configuration for single-stage fan control applications
• Full load rating of 13.8 amps at 120 volts AC and 8 amps at 240 volts AC
• Locked rotor rating of 82.8 amps at 120 volts AC and 48 amps at 240 volts AC
• Pilot duty rating of 40 volt-amps at 30/120 volts AC
• UL and CSA approved for use in residential heating equipment

Compatibility

Designed as an OEM-style replacement fan control for residential gas and oil forced-air furnaces requiring an adjustable SPST temperature-actuated control with a 3-inch mounting footprint.

Installation Notes

A licensed HVAC technician should install this control. Disconnect power to the furnace at the disconnect switch or breaker before removing the old control or making any wiring connections. Mount the control securely against the plenum or heat exchanger surface to ensure accurate temperature sensing. Verify the adjusted setpoint matches the original equipment specification before returning the furnace to service.

Technical Specifications

• Temperature Range: 60 to 140 degrees F
• Contact Configuration: SPST
• Type: Adjustable
• Full Load Contact Rating: 13.8 amps at 120 volts AC / 8 amps at 240 volts AC
• Locked Rotor Contact Rating: 82.8 amps at 120 volts AC / 48 amps at 240 volts AC
• Pilot Duty Rating: 40 volt-amps at 30/120 volts AC
• Dimensions: 3 inches x 1-1/16 inches
• Approvals: UL, CSA

Standard Information

• Brand: CAM-STAT
• Manufacturer Part Number: FF562
