Product Description

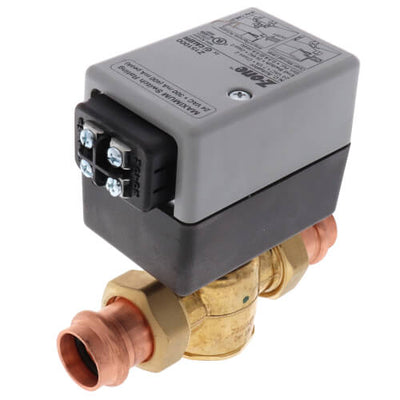

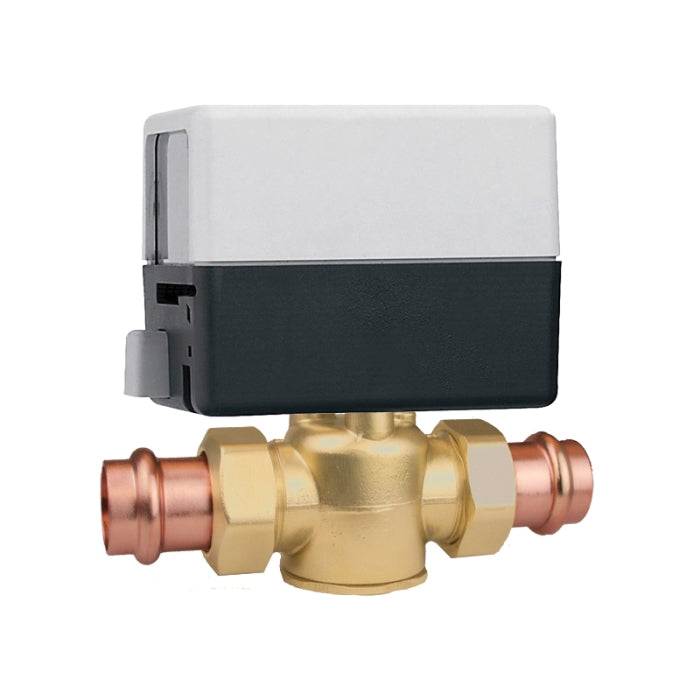

The Caleffi Z55P is a 24V normally closed (NC) zone valve designed for use in hydronic heating and cooling systems. It features 3/4 inch Presscon fittings and offers a 7.5Cv terminal block with an auxiliary switch.
- Compatible with hydronic systems
- Includes 3/4 inch Presscon fittings
- 24V normally closed operation
Product Highlights
The Caleffi Z55P offers reliable control of water flow to individual zones. This valve is ideal for use in heating and cooling systems and functions upon receiving a signal from a thermostat or other controller. It has a maximum pressure of 150 psi, a temperature range up to 230 degrees Fahrenheit, is lead-free, and RoHS compliant.
Product Information
Standard Information
Technical Specifications
-
Voltage Rating: 24 VAC
-
Nominal Size: 3/4 inch
-
Pressure Rating: 150 psi
-
Temperature Range: 32 to 230 degrees Fahrenheit
-
Flow Capacity: 7.5 Cv
-
Material: Forged Brass
-
End Style: Press
-
Dimensions: 5-5/8 inches overall length
